HYD-MECH C350-2S circular cold saw

Description

New HYD-MECH C350-2S circular cold saw, featuring a 14-inch blade and 2.5 power specification. A professional solution for metal cutting applications.

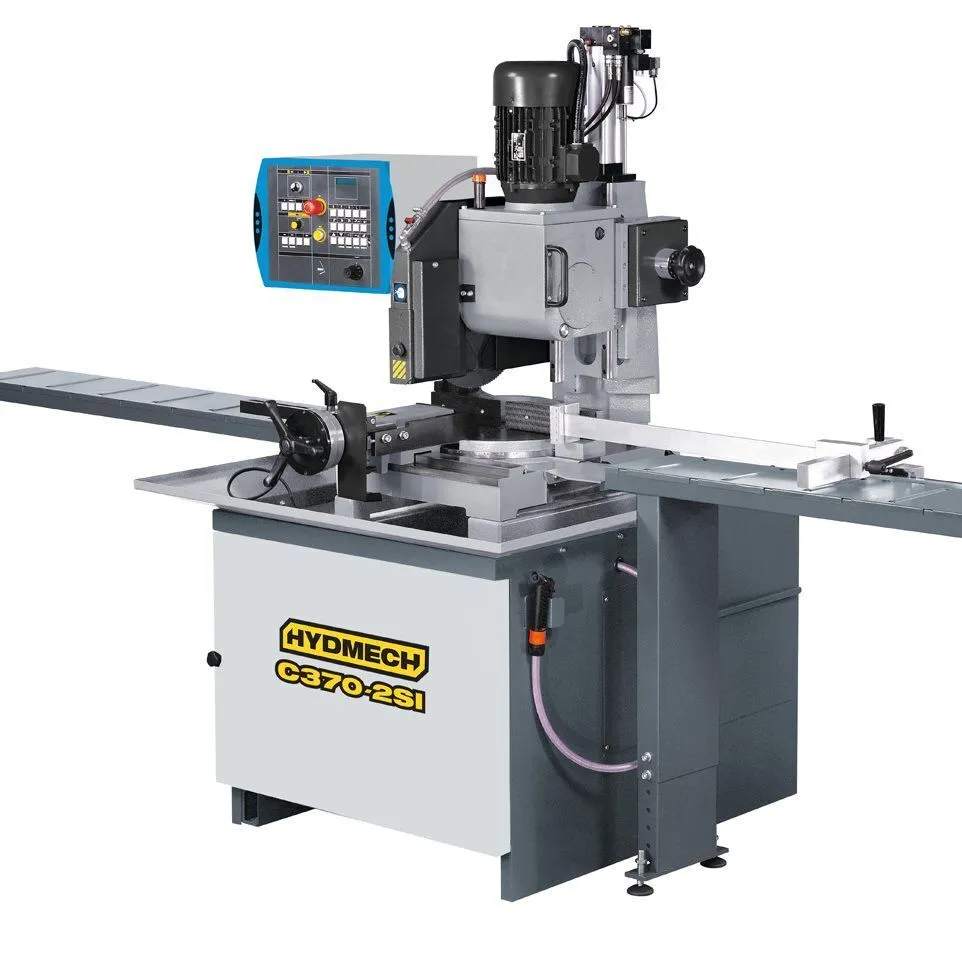

Semi-Automatic Vertical Column Cold Saw
The C370-2SI is a semi-automatic vertical column cold saw with the largest capacity in our cold saw line up. The C370-2SI miters from 60° left to 45° right.

Featuring a 4 3/4″ round hollow capacity, 7.5 HP motor, and 14 1/2″ blade, the C370-2SI is the ideal choice for quick, clean, accurate metal cutting.

STANDARD MACHINE FEATURES
• Semi-automatic operation
• Heavy duty gear box coupled directly to saw makeup the robust saw head

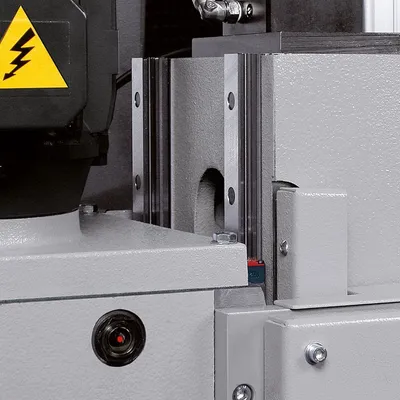

. with manual movement on adjustable dual precision linear rails
• Robust sawing head miters 45° left and right, and 60° left

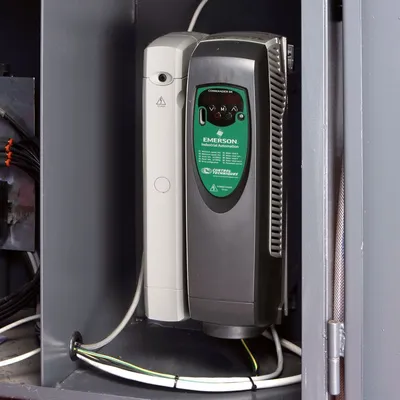

• Infinitely variable blade speed from 15-150 rpm

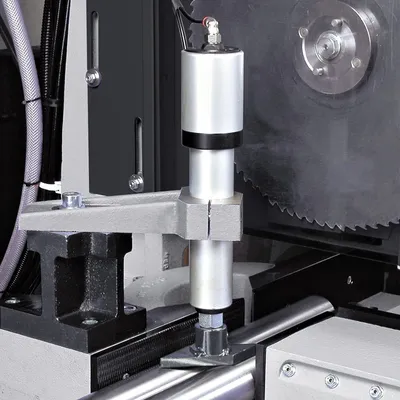

• Anti-burr clamp with double locking system
• Vertical pneumatic vise

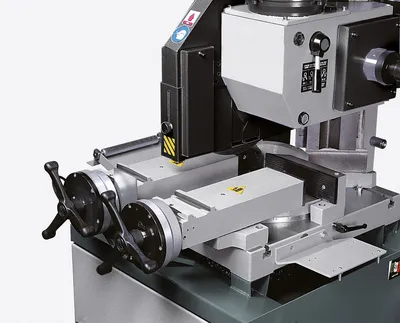

• Pneumatic operating vise capable of sliding on dovetail to adjust with saw head mitered position

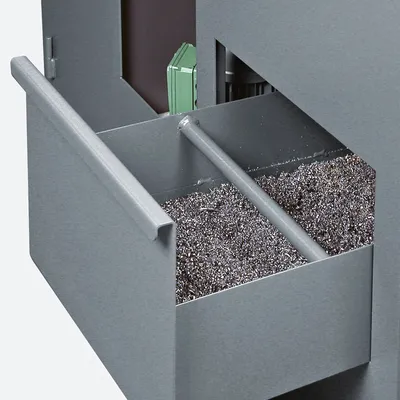

• Enclosed steel base with chip drawer and coolant tank
• Replaceable blade brush
• Ergonomically positioned control panel includes main disconnect,
. programmable sawing stroke, saw head feed rate control,
. and LED display for machine diagnostics

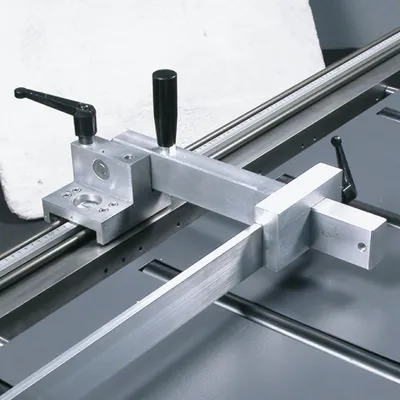

• Adjustable material stop with ruler

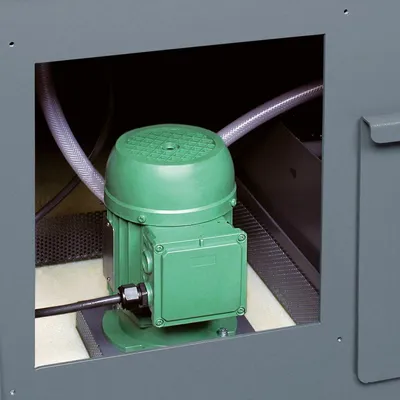

• Flood coolant with electrical coolant pump
• One blade included (370 x 3 x 32 z=200)

OPTIONAL MACHINE FEATURES

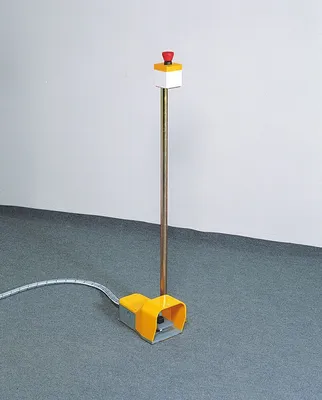

• Foot pedal control with emergency stop
• Second pneumatic horizontal operating vise
• Mist lubrication system

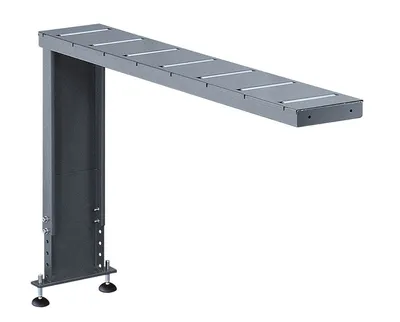

• KK200 5’ roller table • “Flip over” material stops with 60” ruler
• R2 ruler extensions for out feed roller tables
• Roller table support stands (extra legs)
• Roller table adapter – required if ordering roller table for out feed
• HSS Oxide Coated Blade (370 x 3 x 32)
• Power transformer
