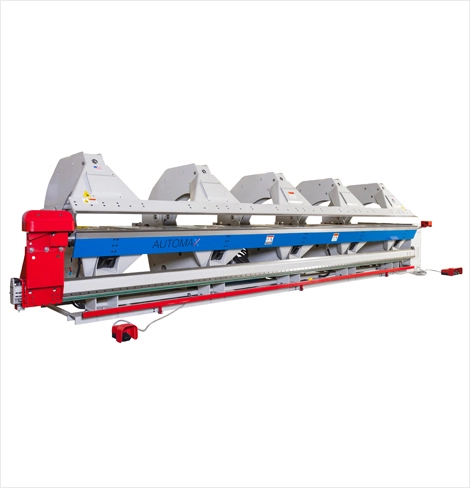

AutoMax is the standard model in Roper Whitney's new American-made long folding line. This sheet metal brake is ideal for builders, metal part fabricators, roofing companies and others who create complex profiles and need the flexibility and throughput of a long folding system.
Bending Length 21.3' / 6.5 m
Maximum Bending Capacity Mild Steel 16 ga / 1.6 mm
Maximum Bending Capacity Stainless Steel 20 ga / 1.0 mm
Maximum Bending Capacity Aluminum 0.08 in / 2.0 mm
Maximum Slitting Capacity Mild Steel 16 ga / 1.6 mm
Back Gauge Travel 49 in / 1250 mm
Number of Back Gauge Fingers (Standard) 5
Minimum Back Gauge Distance (Pushing) 0.394 in / 10 mm
Number of C Frames 5
Number of Bending Cylinders 2
Width of Folding Beam 0.550 in / 14 mm
Folding Beam Maximum Bend 147 degrees
Standard Clamping Rail 35 degrees
Slitter Offset from Bending Point 2.5 in / 70 mm
Hydraulic Motor 7.5 HP
