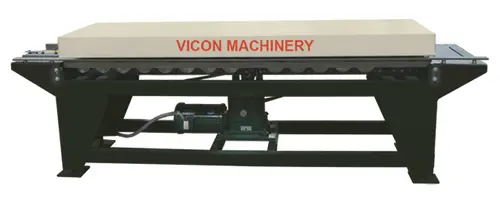

VICON TDX ROLLFORMER

Description

The Vicon TDX 16 Station Rollformer is tooled to produce the T-25b transverse flange (four-bolt) connection. This profile has been evaluated by the SMACNA Testing and Research Institute and meets testing criteria as called for in SMACNA’s HVAC Duct Construction Standards.

The TDX Rollformer is equipped with one set of TDX tooling mounted left outboard and has one inboard and one outboard roll space available for optional tooling based on shop requirements.

Features & Benefits

Sixteen (16) Forming Stations for superior quality
18 - 26 Ga. Material Capacity - no adjustments necessary between gauges (16 Ga. option available)
70 FPM Forming Speed
Independent adjustment at each forming station with pre-set spring tension
Large, heavy duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
Slide out shaft design allows for easy maintenance
Heavy duty 1-1/4" diameter stress proof roller shafts
Woodruff shaft keys for added strength and precise alignment
Hardened infeed guides reduce wear from plasma cut edge
7.5 HP Motor coupled to industrial oil bath gear reducer for quiet longevity
Heavy duty roller chain drive, no belts
