VICON TDX-II ROLLFORMER
Have one to sell?
ConditionNew
New

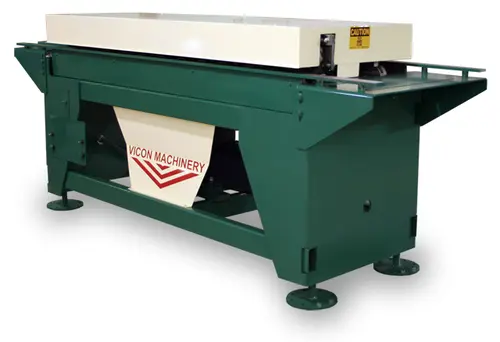

The Vicon TDX-II 12 Station Rollformer is tooled to produce the T-25a transverse flange (four-bolt) connection. This profile has been evaluated by the SMACNA Testing and Research Institute and meets testing criteria as called for in SMACNA’s HVAC Duct Construction Standards.
The TDX-II Rollformer is equipped with one set of TDX-II tooling mounted left outboard standard and has one inboard and one outboard roll space available for optional tooling based on shop requirements.
Features & Benefits
Twelve (12) Forming Stations
18 - 26 Ga. Material Capacity - no adjustments necessary between gauges
50 FPM Forming Speed
Large, heavy duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
Slide out shaft design allows for easy maintenance
Heavy duty 1-1/4" diameter stress proof roller shafts
Woodruff shaft keys for added strength and precise alignment
Hardened infeed guides reduce wear from plasma cut edge
5 HP Motor coupled to industrial oil bath gear reducer for quiet longevity
Heavy duty roller chain
