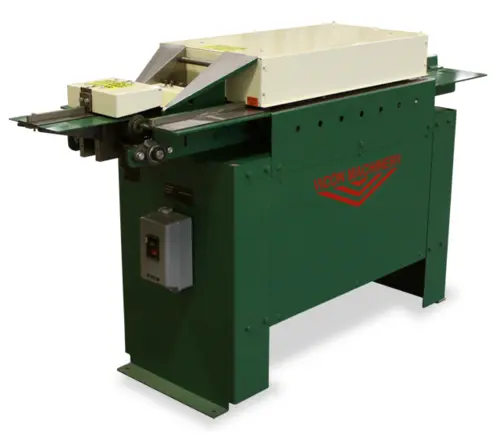

VICON V8 SLIP-DRIVE ROLLFORMER

Description

The Vicon V8 Slip & Drive Rollformer produces connections that exceed the standards set by SMACNA. This eight station rollformer is equipped with Flat "S" and Drive Cleat tooling inboard and can be equipped with your choice of outboard tooling such as Pittsburgh, Snaplock, 4-in-1, or Acme Lock Rolls depending on shop requirements. An optional high speed slitter is available to produce slips and drives from scrap metal, saving labor and material.

Features & Benefits

Quietest machine in the industry
Eight forming stations for all roll sets - no opening roll on any roll set
Large, heavy duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
Slide out shaft design allows for easy maintenance
Heavy duty 1" diameter stress proof roller shafts
Woodruff shaft keys for added strength and precise alignment
5 HP/3 Phase motor coupled to an industrial oil bath worm gear drive for longevity
Heavy duty roller chain drive, no belts
Heavy duty motor starter with thermal protection overloads
90 FPM Pitch Speed
Options
Slitter Attachment
5 Gallon Sealant System for sealing Pittsburgh Lock (1 Gun)
5 HP Single Phase Motor (90 FPM)
3 HP Single Phase Motor (60 FPM)
Additional options available
