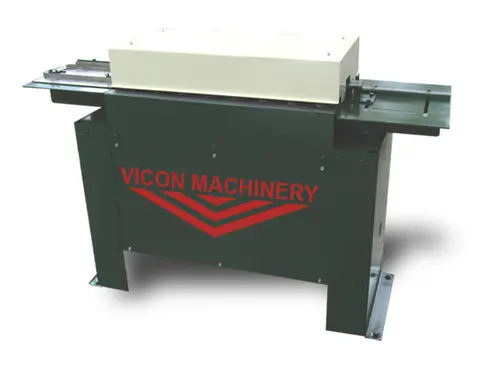

VICON V8-RPSL SNAPLOCK ROLLFORMER

Description

The V8 Eight-Station Snaplock Rollformer produces connections that exceed the standards set by SMACNA.

The V8 rollformer can be tooled with either Button Punch Snaplock or Round Pipe Snaplock.

Features & Benefits

Quietest machine in the industry
Eight forming stations for all roll sets - no opening roll on any roll set
Large, heavy duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
Slide out shaft design allows for easy maintenance
Heavy duty 1" diameter stress proof roller shafts
Woodruff shaft keys for added strength and precise alignment
5 HP motor coupled to an industrial oil bath worm gear drive for longevity
Heavy duty roller chain drive, no belts
Heavy duty motor starter with thermal protection overloads
Options
Crossover System
Two machines tooled and positioned to allow for faster production rates of Pittsburgh & Snaplock
