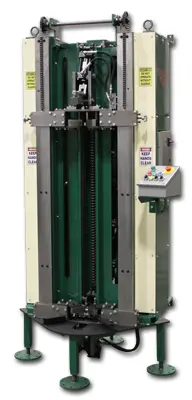

VICON V-PSC-V516 PITTSBURGH SEAM CLOSER

Description

The Vicon Pittsburgh Seam Closer reliably closes the Pittsburgh seam on duct work ranging from 26 to 16 gauge and 12" to 60" in length. The heavy-duty "Single V" forming roll closes the Pittsburgh seam from either side, eliminating the need to turn the duct section over to align the Pittsburgh edge with the forming wheels thus saving time and labor.

Features & Benefits

26 to 16 Gauge material capacity
12" to 60" duct length
"Single V" Forming Roll with heavy duty bearings and shafts will close the Pittsburgh seam from either side eliminating the need to turn duct section over to align the Pittsburgh edge with the forming wheels.
Grease fittings on the forming roll for longevity
Easy to clean sealant from forming roll
Counter balanced top clamp head for easy set-up (no tools required)
Large, heavy-duty removable clamp pads for easy clean up of duct sealant
Large, heavy-duty roller chain drive (no cables)
Easy operation with manual or automatic Push Button Control
Hydraulic Power Unit (not shown)
3 HP Motor (Single or 3-Phase Voltage)
Fits most existing pits, pit dimensions provided upon request
