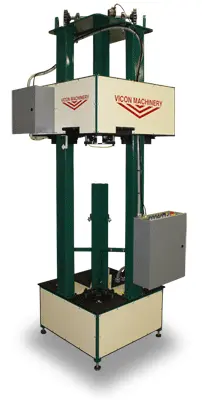

VICON V-DH-CIM-5 DUAL HEAD CORNER INSERTION MACHINE

Description

The Vicon Dual Head Corner Insertion Machine inserts and crimps stackable bolt connection corners into straight duct with T25-a or T25-b flanges. The Vicon Dual Head Corner Insertion Machine handles ducts of 26 to 16 gauge galvanized in lengths ranging from 32” to 56” with quick and simple adjustments. Truly the most reliable and rugged machine available.

Features & Benefits

26 to 16 gauge capacity
Minimum straight duct length 32"
Maximum straight duct length 56"
Heavy duty tubular frame structure design
No tools required for changing duct lengths
Available tooling for T25-a or T25-b corners
Duct connector types TDX®, TDC®, TDF®
Compatible with most brands of stackable corners
Auto or manual control functions
Top and bottom head can be operated independently
Low corner quantity alarm sensor eliminates crimping without the corner
Built in quick leveling system for easy installation
Easy removable access covers for maintenance and cleaning
Voltage 110/1/60 Hz
Air requirement: 100 PSI
Optional six foot (6') capacity machine available upon request
Pit dimensions provided upon request
