VICON SHEAR-N-BEND WITH CLEAT FORMER

Description

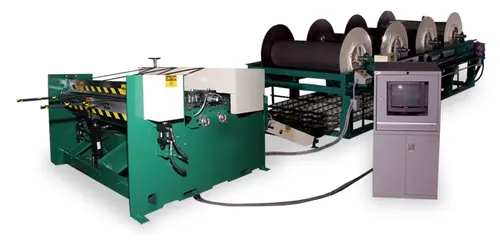

The Duct-Line Express Shear-n-Bend with Cleat Former is expandable to a Full Coil Line system at anytime. This practical solution includes an uncoiler (patented), feeder, straightener unit, beader, cleat forming head, notching unit, heavy duty shear and bending unit.

Features & Benefits

Pneumatic back-up wheels at each coil station for safe band removal and positive coil feed.
Robust, gear-driven four (4) roll straightener with 4" diameter rolls.
Ring type beading with SMACNA spacing.
Heavy duty notching unit with combination dies to provide Slip & Drive, TDX, Snaplock and Pittsburgh notch patterns.
Dual hydraulic cylinder shear with high carbon, high chrome D-2 shear blades. Fully adjustable heavy duty gibs allow for independent blade gap adjustment. Heavy duty torsion synchronization shaft insures proper shear angle throughout the stroke.
Integrated rollforming produces hems or flanges on the edge of the material.
Rugged bending unit to form the male Pittsburgh edge as well as either an L-section, U-section, or full wrap duct.
Vicon PC based control system capable of controlling a complete system.
Hands-free coil feed
Options
72" coil width
Precision, high speed servo system
Tie rod hole punch unit Model HP-5 provides tie rod and damper holes per SMACNA standards (or your own standards).
Male button punch system for Snaplock male edge.
Economical overfed coil cradle systems for smaller overall footprint.
