VICON V-60 16-N DUCT LINE EXPRESS

Description

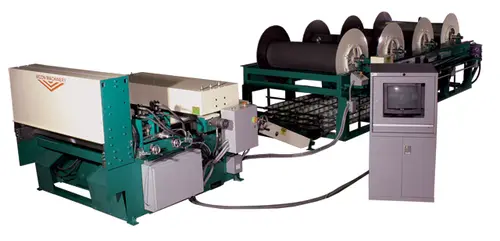

The Duct-Line Express front end is expandable to a Full Coil Line system at anytime. This practical solution includes an uncoiler (patented), feeder, straightener unit, beader, notching unit and heavy duty shear.

The Vicon Coil Cradle System is an innovative solution for the easy loading of coils. Convenient removable coil keeper end plate is light enough for just one person to attach it to the drum mandrel.

Features & Benefits

Pneumatic back-up wheels at each coil station for safe band removal and positive coil feed.
Robust, gear-driven four (4) roll straightener with 4" diameter rolls.
Heavy duty notching unit with combination dies to provide Slip & Drive, TDX, Snaplock and Pittsburgh notch patterns.
Dual hydraulic cylinder shear with high carbon, high chrome D-2 shear blades. Fully adjustable heavy duty gibs allow for independent blade gap adjustment. Heavy duty torsion synchronization shaft insures proper shear angle throughout the stroke.
Vicon PC based control system capable of controlling a complete system.
Ring type beading with SMACNA spacing.
Hands-free coil feed
Options
72" coil width
Precision, high speed servo system
Tie rod hole punch unit Model HP-5 provides tie rod and damper holes per SMACNA standards (or your own standards).
Economical overfed coil cradle systems for smaller overall footprint.
