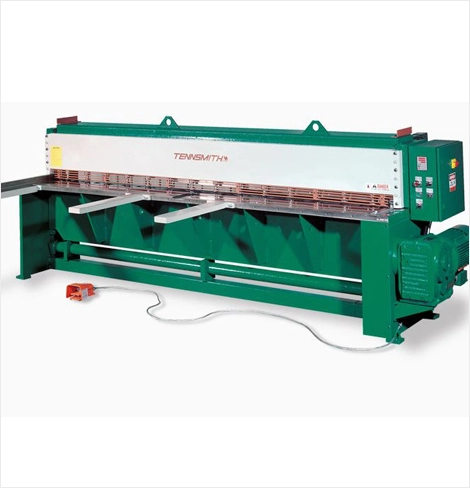

TENNSMITH LM810 MECHANICAL SHEARS
Have one to sell?
ConditionNew
New
The LM series shears are standard with four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with noprene inserts, single continuous and jog stroke cycles, motor reverse switch, precision-macines table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
Capacity Mild Steel
10 Gauge
3.5 mm
Capacity, Stainless Steel
14 Gauge
2.0 mm
Maximum Cutting Length
97 in.
2464 mm
Back Gauge Range
30 in.
762 mm
Strokes Per Minute, Full Length
35
Motor-230/460v,3-PHASE, 60Hz
10 hp
Numbers of Holddowns
14
Floor Space, Gauges in Position
116 x 72 x 56 in.
2947 x 1829 x 1423 mm
Shipping Weight
6800 lbs
3091 kg
