TENNSMITH PR-16 POWER ROTARY MACHINES
Have one to sell?
ConditionNew
New

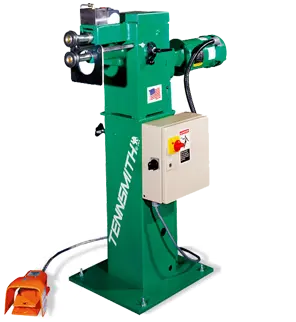

The PR-16 power rotary is a versatile machine capable of forming numerous applications up to 16- gauge mild steel material. Standard features include variable speed control, heavy cast body with steel body stands.
A 3/4-hp gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame on the standard unit; an optional hydraulic powered forming pressure unit is available. Rolls are order separately for this unit.
Crimping, single beading, ogee beading, elbow edging, flattening, wiring, burring and turning rolls are available.
Capacity, Mild Steel
16 Gauge
1.6 mm
Capacity, Stainless Steel
20 Gauge
1.0 mm
Throat
10 in.
254 mm
Distance, Shaft Center to Center
2-1/2 in.
63.5 mm
Gear Ratio
3:1
Working Speed Variable
3 to 45 rpm
Motor
3/4 hp
Shipping Weight
350 lbs.
159 kg
