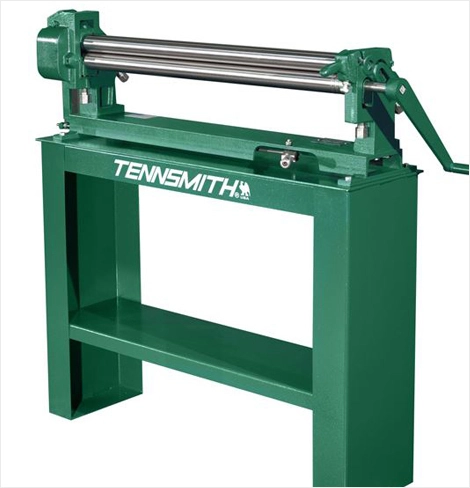

TENNSMITH SR36 SLIP ROLLS
Have one to sell?
ConditionNew
New
Tennsmith's slip rolls combine precision-turned ground and polished high carbon steel rolls with heavy-duty, cast iron end frames and a welded steel base to make an accurate and durable forming tool. Convenient operating features include large roll adjusting screws, scales for speeding repeat set-up, and a front-mounted handle to lift the upper roll for material removal. Wire grooves are standard.
Capacity, Mild Steel
22 Gauge
0.75 mm
Maximum Forming Length
36 in.
914 mm
Diameter of Rolls
2 in.
51 mm
Minimum Forming Radius
1 in.
25 mm
Wire Grooves
3/16, 1/4, 5/16 in.
5, 6.5, 8 mm
Dimensions, L x W x H
51 x 19 x 19 in.
1295 x 483 x 483 mm
Shipping Weight
250 lbs.
113 kg
