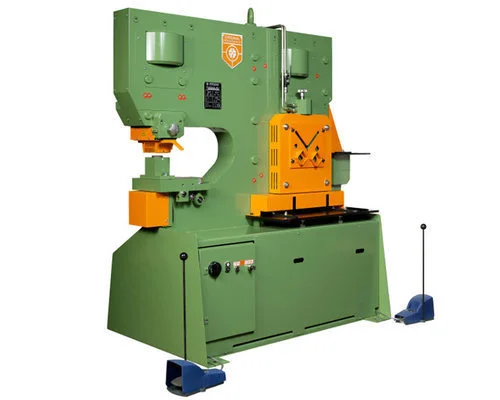

PEDDINGHAUS PEDDIMAX NO. 1
Have one to sell?
ConditionNew
New
Continuing in the footsteps of the legendary 210 series of mechanical ironworkers, the Peddimax No.1 two-station hydraulic ironworkers are designed for continuous production with independent cylinders and a unique dual slide design. Hydraulic power of up to 140 tons ensures that you have power to spare, and the various tooling options available provide you with a quick, efficient way to produce parts for your next big job.
Power Rating 15 HP
Charge of Oil 27 gallons
Net Weight with Oil 6,100 lbs
Machine Dimensions 80” × 40” × 75”
Continuing in the footsteps of the legendary 210 series of mechanical ironworkers, the Peddimax No.1 two-station hydraulic ironworkers are designed for continuous production with independent cylinders and a unique dual slide design. Hydraulic power of up to 140 tons ensures that you have power to spare, and the various tooling options available provide you with a quick, efficient way to produce parts for your next big job.
Imperial
| Tonnage | 140 T |
| Angle (L1) | 6" |
| Angle (T) | 0.5" |
| Power | 15 hp |
| Throat | 20" |
| Stroke | 2" |
Power Rating 15 HP
Charge of Oil 27 gallons
Net Weight with Oil 6,100 lbs
Machine Dimensions 80” × 40” × 75”
