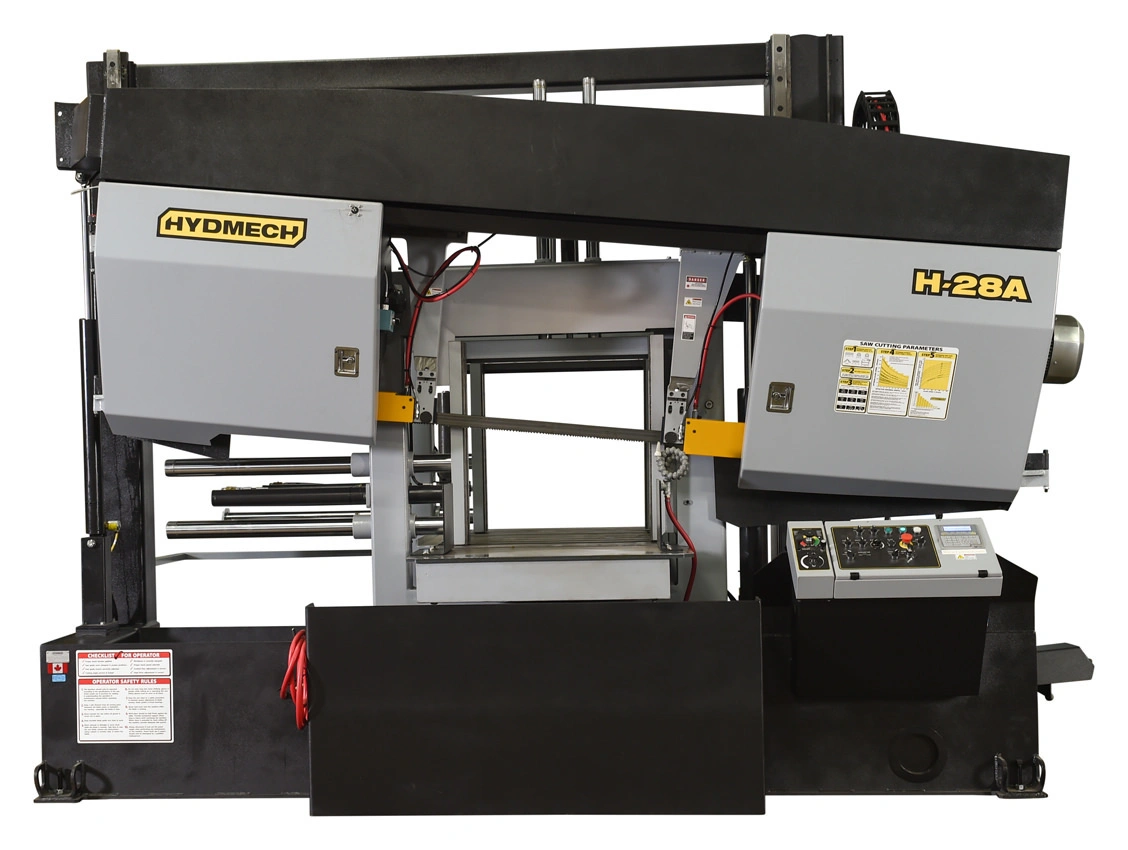

The H-28A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-28A is fast, with its high speed shuttle feed indexing up to 32" in a single movement. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
Hyd-Mechs direct down feed system provides easy adjustment of both head feed rate and cutting pressure.
Featuring a 28" x 28" capacity, 10 HP motor, and 2" blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications.
Capacity Rectangular (h x w) Round
90° 28″ x 28″ 28″
Canted: 24″ x 28″ Canted: 24″
Blade Size 2” x 25’
Blade Drive 10 HP VFD
Machine Voltage 480 v (208, 240 575*)
Blade Speed 40-300 SFM
Automatic Multi-Indexing 0-32″
Machine Weight 18,000 lbs.
Table Height 31” Canted: 37″
Dimensions (w x l x h) 161” x 92” x 120”
