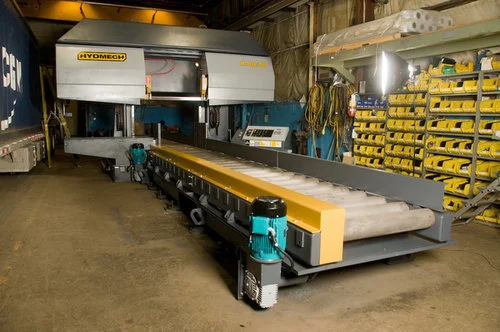

HYD-MECH H-40/40 HORIZONTAL DUAL COLUMN BAND SAW
Have one to sell?
ConditionNew
New
The H-40/40 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-40/40 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.
Featuring a 40" x 40" capacity, 20 HP motor, and 3" blade, the H-40/40 is a reliable choice for all your heavy-duty horizontal metal cutting applications.
Capacity Rectangular (h x w) Round
90° 40″ x 40″ 40″
Blade Size 3” x 37’
Blade Drive 20 HP VFD
Machine Voltage 480 v (208, 240, 575*)
Blade Speed 45-225 SFM
Machine Weight 42,000 lbs.
Table Height 27”
Dimensions (w x l x h) 215” x 102” x 145”
