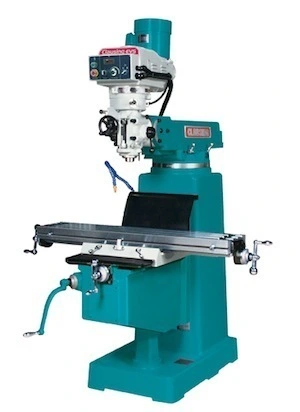

CLAUSING 450EVS
Have one to sell?
ConditionNew
New
Get the Advantages of an EVS Mill at a Very Affordable Price.
Clausing’s line of Heavy Duty EVS Mills are easy to operate, require less maintenance than mechanical variable speed machines and offer features found only on
higher priced EVS Mills...
TABLE
Table Size 10" x 54" (254 x 1372mm)
No. of T-slots 3
T-slot width .63" (16mm)
T-slot center distance 2.48" (63mm)
TRAVELS
X axis, longitudinal 39.7" (1008mm)
Y axis, cross 16" (406mm)
Z axis, knee 16" (406mm)
Ram travel 22" (559mm)
Ram swivel 360°
Spindle to column 5.8"-28.9" (147 - 734mm)
Spindle nose to table 3.54"-19.7" (90 - 500mm)
SPINDLE HEAD
Spindle drive motor 3 hp (2.25 kw)
Spindle speed range 50-5000 rpm
Spindle taper R-8 or ISO 30
Quill travel 5" (127mm)
Quill diameter 3.38" (83mm)
Quill feed (in/rev) (mm/rev)
Head tilt (front or back) 45°
Head tilt (left or right) 90°
