CLAUSING 3VS
Have one to sell?
ConditionNew
New

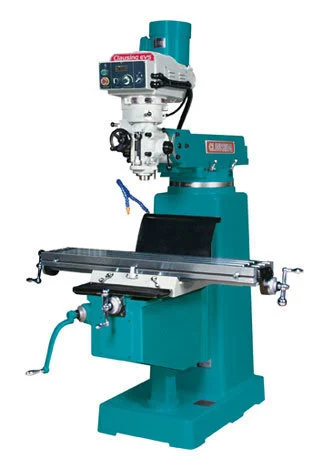

If you’re looking for a Heavy-duty Standard Vertical Milling Machine, at an affordable price, the Clausing knee mills are what you’re looking for.
Designed for precision, the Clausing Mills deliver all the power, precision and versatility you need to handle most milling jobs in your toolroom.
The Clausing Knee Mills are one of the heaviest in it’s class and is equipped with a powerful spindle drive motor and an infinitely variable speed drive offering a speed range of 75 to 4350 rpm.
These Mills offer features often found only on higher priced milling machines..
Table & Ways
Table Size 10" x 54" (254x11370mm)
No. of T-Slots 3
T-Slot Width .638" (16mm)
T-Slot Center Distance 2.48" (63mm)
Table Ways Dovetail
Knee Ways Square
Column Ways Dovetail
Travels
X Longitudinal 39.5" (1003mm)
Y Cross 15.75" (400mm)
Knee 15.55" (395mm)
Ram 22.04" (560mm)
Motors & Spindle
Spindle Motor 3 hp
Amp. Draw 208v. 7
Amp. Draw 230v. 7
Amp. Draw 460v. 5
Variable Spindle Speed rpm 85-4350
Low Range rpm High Range rpm 75-780 515-4350
Main Spindle Taper R-8 or ISO 30
Spindle Travel 5" (127mm)
Quill Feed (in/rev.) (mm/rev) .0015/.0031/.006 (.004/.008/.015mm)
Quill Diameter 3.38" (86mm)
Construction & Weight
Column Turret Diameter 14.96" (380mm)
Knee Width 11.42" (290mm)
Column Bearing Length 17.91" (455mm)
Saddle/Table Bearing Length 20.28" (515mm)
Ram/Turret Bearing Length 17.32" (440mm)
Ram Length 41.73" (1060mm)
Table Load 665 Ibs. (302kg)
Net Weight 2,985 Ibs. (1350kg)
