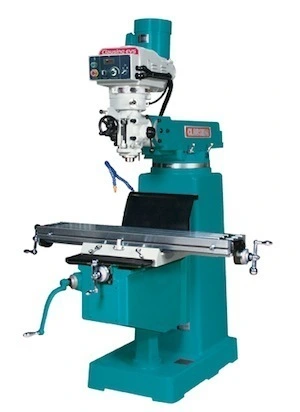

CLAUSING 500EVS
Have one to sell?
ConditionNew
New
Get the Advantages of an EVS Mill at a Very Affordable Price.
Clausing’s line of Heavy Duty EVS Mills are easy to operate, require less maintenance than mechanical variable speed machines and offer features found only on
higher priced EVS Mills...
TABLE
Table Size 11" x 58" (254 x 11473mm)
No. of T-slots 3
T-slot width .63" (16mm)
T-slot center distance 2.48" (63mm)
TRAVELS
X axis, longitudinal 42.7" (1085mm)
Y axis, cross 16" (406mm)
Z axis, knee 17.7" (450mm)
Ram travel 22" (559mm)
Ram swivel 360°
Spindle to column 5.3"-27.2" (135 - 691mm)
Spindle nose to table 1.57"-19.2" (40 - 489mm)
SPINDLE HEAD
Spindle drive motor 5 hp (3.7 kw)
Spindle speed range 50-5000 rpm
Spindle taper R-8 or ISO 30
Quill travel 5" (127mm)
Quill diameter 3.38" (83mm)
Quill feed (in/rev) (mm/rev)
Head tilt (front or back) 45°
Head tilt (left or right) 90°
Get the Advantages of an EVS Mill at a Very Affordable Price.
Clausing’s line of Heavy Duty EVS Mills are easy to operate, require less maintenance than mechanical variable speed machines and offer features found only on
higher priced EVS Mills...
Standard Features...
I Meehanite castings for superior rigidity and wear resistance
I Hardened and ground ways
I Ground ram ways
I Column & knee way covers
I Hardened and ground table surface
I Ground T-slots to provide reference edge for
positioning workpiece
I Hardened and ground spindle
I Hardened, ground and chromed quill
I Hardened X & Y axis leadscrew and Nickel
Phosphorous treated
I Coolant system
I Flexible segmented coolant nozzle
I 3 hp AC motor on 400EVS & 450EVS, optional 4hp AC motor for 450EVS
I 5 hp AC motor on 500EVS
I Yaskawa inverter variable speed drive
I Dovetail X,Y & Knee axis ways on 400EVS
I Square Y axis ways and dovetail X & Knee axis ways on 450EVS
I Square Y & Knee axis ways and dovetail X axis ways on 500EVS
I Lever operated manual rapid quill movement I Handwheel for fine quill feed
I Adjustable automatic feed disengagement
for quill feed in both directions
I Micrometer depth stop
I Reversing switch for clockwise or counter clockwise operation
I R-8 or ISO 30 spindle
I Spindle hand brake with auto power off
I One-shot lubrication
I Test and accuracy chart
I Tools, tool box, operation and parts manuals
I Standard voltage 230/3/60 other voltages require a optional transformer
Imperial
| Table-W | 11" |
| Table-L | 58" |
| Travel-Long | 38.2" |
| Travel-Cross | 16" |
| Power | 4 hp |
| RPM | 5,000 RPM |
TABLE
Table Size 11" x 58" (254 x 11473mm)
No. of T-slots 3
T-slot width .63" (16mm)
T-slot center distance 2.48" (63mm)
TRAVELS
X axis, longitudinal 42.7" (1085mm)
Y axis, cross 16" (406mm)
Z axis, knee 17.7" (450mm)
Ram travel 22" (559mm)
Ram swivel 360°
Spindle to column 5.3"-27.2" (135 - 691mm)
Spindle nose to table 1.57"-19.2" (40 - 489mm)
SPINDLE HEAD
Spindle drive motor 5 hp (3.7 kw)
Spindle speed range 50-5000 rpm
Spindle taper R-8 or ISO 30
Quill travel 5" (127mm)
Quill diameter 3.38" (83mm)
Quill feed (in/rev) (mm/rev)
Head tilt (front or back) 45°
Head tilt (left or right) 90°
