WILA TOOL CLAMPING

Description

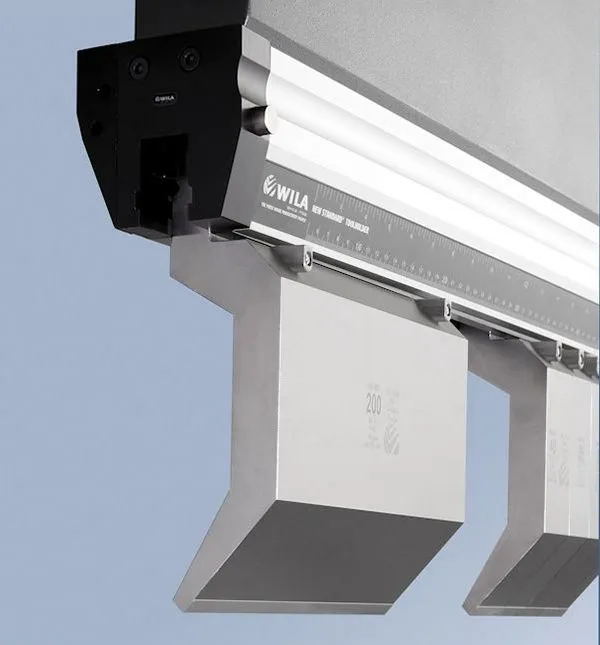

Innovative and super-fast clamping systems for clamping punches to the upper beams of press brakes. The Universal Press Brake Concept (UPB) makes it possible install New Standard and American Style Clamping Systems on any press brake.

The advantages:

Extremely fast press brake tooling changes
Maximum control of vertical tolerances during the bending process (Tx- axis alignment)
Extremely accurate clamping, positioning and alignment
Individual clamping pins for each tool segment for superior clamping force
Vertical and horizontal tool loading and unloading for maximum speed and safety
Professional finish, including a slide rule for ease of tool positioning
Suitable for all press brake brands and sizes
Provides maximum productivity when used in combination with WILA Tooling
New Standard Premium Clamping
The ultimate in accuracy and performance
Highest quality for all press brakes
Extremely high workload capacity and durability
All load bearing and clamping surfaces are fully CNC-Deephardened® (ca. 56 HRC) for maximum durability
Guaranteed maximum term performance
Capable of clamping and positioning punch segments as small as .394" (10 mm) in length
Suitable for both head and shoulder-loaded tools
Maximum tool weights for self-seating of tools
Hydraulic: 205 lbs/ft. (300 kg per meter)
Manual: 123 lbs/ft. (180 kg per meter)

New Standard Pro Clamping
A high quality alternative for all press brake with limited open height
Quality in accordance with strict WILA standards
Comparable performance with New Standard Premium Clamping Systems, but without hardened load bearing and clamping surfaces to reduce cost
Capable of Clamping punch segments as small as .590" (15 mm) in length
Suitable for both head and shoulder-loaded tools
Great value for investment
Maximum tool weight
Hydraulic: 68 lbs/ft. (100 kg per meter)
Manual: 123 lbs/ft. (180 kg per meter)
HYDRAULIC CLAMPING
High efficiency for frequent and fast tool changes
Ideal for meeting the most demanding requirements. Perfect for robotic tool changes. A flexible hose along the entire length of the system is used to transfer oil pressure to the tooling via hardened clamping pins, providing maximum reliability. Once the clamping system has been activated, all tools are automatically positioned, centered and aligned.
