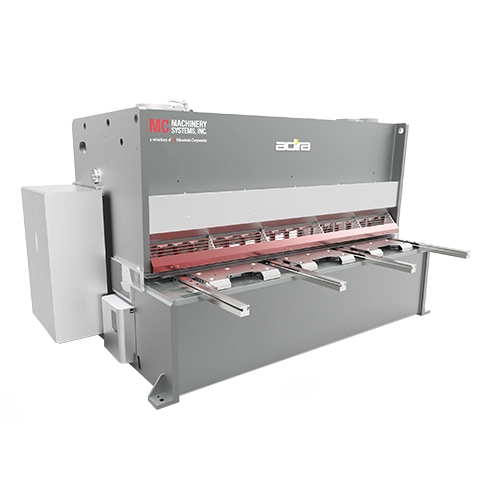

MC Machinery GV 1630
Have one to sell?
ConditionNew
New
For Heavy-duty jobs, the GV series is the ultimate solution for cutting capacities from 16mm to 25mm and up, with length options up to 6 meters. Fully customized solutions are available for productivity and automation.
Shearing capacity: Max cutting angle (mm.)
Mild steel (45daN/mm2) (mm.) 16
Stainless steel (70daN/mm2) (mm.) 10
Shearing capacity: Normal cutting angle (mm.)
Mild steel (45daN/mm2) (mm.) 13
Stainless steel (70daN/mm2) (mm.) 8
Cutting length (mm.) 3,050
Frame gap (mm.) 410
Rake angle
0.5° to nominal (degrees) 2
0.5° to max (degrees) 3.5
Blade gap adjustment (mm.) 0.05 – 2.5
Motor power (kW) 22
Number of holddowns 16
Holddown force (ton) 45
Back gauge range (mm.) 1,100
Strokes per minute
Normal cutting angle (cuts/min.) 13 to 26
Max cutting angle (cuts/mind.) 8 to 21
Dimensions (CE – configuration)
Length (mm.) 4,150
Width (mm.) 2,370
Height (mm.) 2,550
Weight (Kg) 16,000
