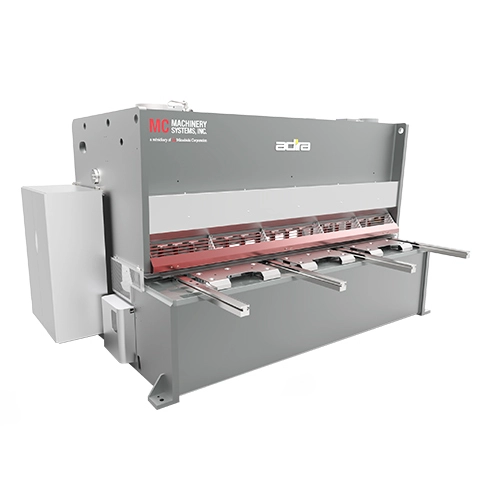

MC Machinery GV 1660
Have one to sell?
ConditionNew
New
For Heavy-duty jobs, the GV series is the ultimate solution for cutting capacities from 16mm to 25mm and up, with length options up to 6 meters. Fully customized solutions are available for productivity and automation.
Shearing capacity: Max cutting angle (mm.)
Mild steel (45daN/mm2) (mm.) 16
Stainless steel (70daN/mm2) (mm.) 10
Shearing capacity: Normal cutting angle (mm.)
Mild steel (45daN/mm2) (mm.) 13
Stainless steel (70daN/mm2) (mm.) 8
Cutting length (mm.) 6,100
Frame gap (mm.) 410
Rake angle
0.5° to nominal (degrees) 1.5
0.5° to max (degrees) 2.75
Blade gap adjustment (mm.) 0.05 – 2.5
Motor power (kW) 22
Number of holddowns 31
Holddown force (ton) 76
Back gauge range (mm.) 1,100
Strokes per minute
Normal cutting angle (cuts/min.) 6 to 14
Max cutting angle (cuts/mind.) 4 to 10
Dimensions (CE – configuration)
Length (mm.) 7,240
Width (mm.) 2,370
Height (mm.) 2,770
Weight (Kg) 35,000
