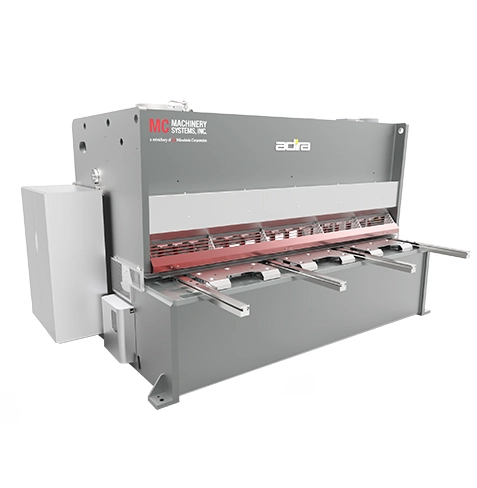

For Heavy-duty jobs, the GV series is the ultimate solution for cutting capacities from 16mm to 25mm and up, with length options up to 6 meters. Fully customized solutions are available for productivity and automation.
Shearing capacity: Max cutting angle (mm.)
Mild steel (45daN/mm2) (mm.) 20
Stainless steel (70daN/mm2) (mm.) 14
Shearing capacity: Normal cutting angle (mm.)
Mild steel (45daN/mm2) (mm.) 16
Stainless steel (70daN/mm2) (mm.) 10
Cutting length (mm.) 3,050
Frame gap (mm.) 410
Rake angle
0.5° to nominal (degrees) 2
0.5° to max (degrees) 3.5
Blade gap adjustment (mm.) 0.05 – 3
Motor power (kW) 30
Number of holddowns 16
Holddown force (ton) 58
Back gauge range (mm.) 1,100
Strokes per minute
Normal cutting angle (cuts/min.) 10 to 21
Max cutting angle (cuts/mind.) 7 to 17
Dimensions (CE – configuration)
Length (mm.) 4,170
Width (mm.) 2,370
Height (mm.) 2,550
Weight (Kg) 17,000
