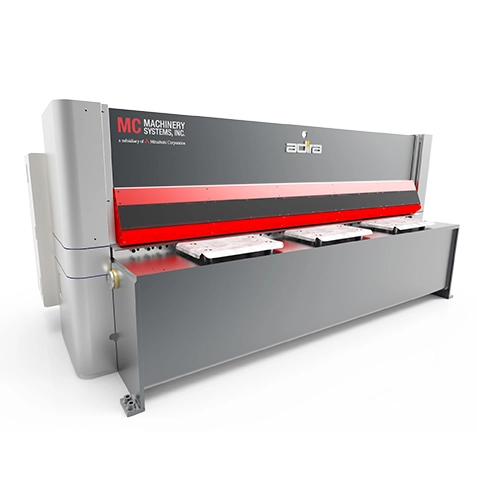

The GH series is the perfect solution for users that demand technology and quality with an accessible investment. With the Plus, the shear can evolve and increase its level of automation and productivity with the options available.
Cutting Capacity
Mild Steel (45daN/mm) (mm) 10
Stainless Steel (70daN/mm2) (mm) 6.5
Cutting Length (mm) 3,050
Frame Gap (mm) 260
Rake Angle 2
Blade Clearance Adjustment (mm) 0.05 – 1.6
Number of Holddowns 16
Back Gauge Range (mm) 1,000
Strokes/Minute 7
