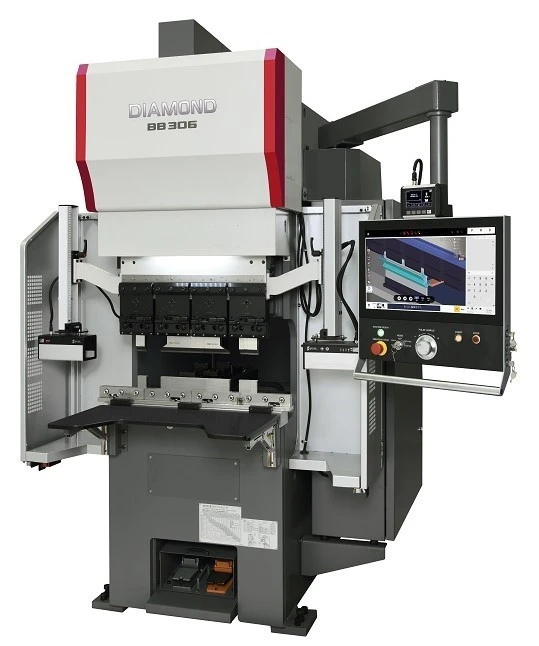

MC MACHINERY - BB306 - ELECTRIC & HYBRID
Have one to sell?
ConditionNew
New
The New Diamond Series electric brake is driven by an AC Servo motor and ball screw mechanism. It has reached high productivity with a high-speed ram and high precision repeatability (+/- 0.001mm). When you need accuracy, EVERY TIME, you can count on the BB Series.
Press Force: Metric (US) 28 (30)
Bending Length: MM (In) 630 (25)
Back Gauge Axis 5/6
Open Height: MM (In) 430 (17)
Ram Stroke: MM (In) 150 (6)
Gap Depth: MM (In) 200 (8)
Distance Between Frames: MM (In) 700 (28)
Strokes/Hour (SPH) 1714
