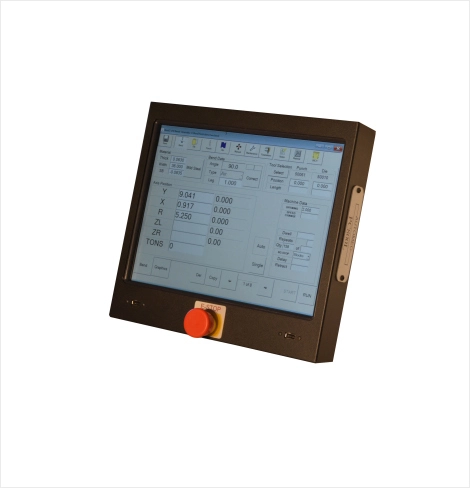

The PC800 is a graphical control for Automec's family of CNC back gauges that uses digital photos and 2-D graphics to make your press brake forming easier. The PC800 allows you to photograph your press brake tooling and bend sequences, and integrate them to your bending program. Multiple press brakes can share information with a simple windows network that you can set up yourself. It is available as a one, two, or three axis control and can be connected to all Automec 24" and 48" back gauges.
Input power: 110 VAC, 1 Phase 50/60 HZ, 3 amps max
Operating temperature: 0°C - 60°C
64 Optically isolated 24VDC inputs/outputs
Automatic axis initialization procedure
Programmable PLC functions and configurable machine parameters
PCI Bus DSP motion control card
32-bit floating point digital signal processing @ 60 MHz
Real-time, multi-tasking firmware
Industrial PC with MS Windows XP/Win7-32 bit operating system
1.8 GHz Duel Core CPU, 60 GB solid state hard drive and 2 GB DDR3 memory
15.1” Color LCD Industrial touch screen
Standard PC keyboard option
1 Serial, 1 Parallel port
Deterministic logic & motion card control with safety interlocking and alarms
Programming at the machine and off-line
2 external USB ports
4 internal USB ports
X-axis travel 24” or 48”
Y-axis travel 12” or 24”
R-axis travel 8.5”
Axis resolution .001”
Axis repeatability +/- .002”
Bend Wizard Graphical User Interface Software with off-line programming
PC anywhere remote access software for off-site trouble shooting
Diagnostic & Servo tuning software
USB memory stick for complete system recovery in less than 20 minutes
Programmable delay and retract at pinch point
Inch/mm conversion
Available up to 3 axes
1 year warranty
