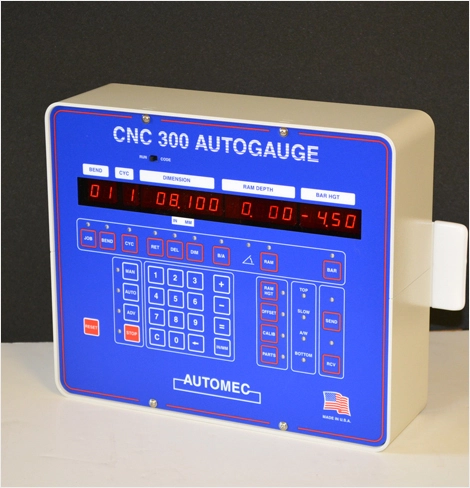

AUTOMEC CNC300
Backgauges
The CNC300 control can be programmed as simple as our popular CNC150 or it can be programmed to utilize an array of sophisticated functions. These include a tool library, RS232 computer interface with software, automatic ram referencing, ram angle mode, back gauge reversal on pinch point, and a parts counter.
Ram display can show true ram Single entry ram offset and
position in depth or angle. bend allowance included
All ram dimensions can be offset RS232 interface and software
+/- .393″ with one data entry
300 jobs (00 to 299) Automatic ram calibration to
tool heights
10 bends per job .001″ resolution
(linking available)
Tool library Red L.E.D. display
Depth or angle mode IN/MM conversion
Programmable delay / retract Tactile feel push buttons
between bends (0-19 sec.)
Bend allowance +/- .393″ 30 day battery backup
Calculator to change Input power – 115 VAC +/
dimensions incrementally - 10% 50/60 HZ, 7A
Angle adjust for angle correction 24″ or 48″ backgauge
Backguage reversal on pinch point 11 digit job number Parts
(time and distance) counter 1,2, or 3
axis available
