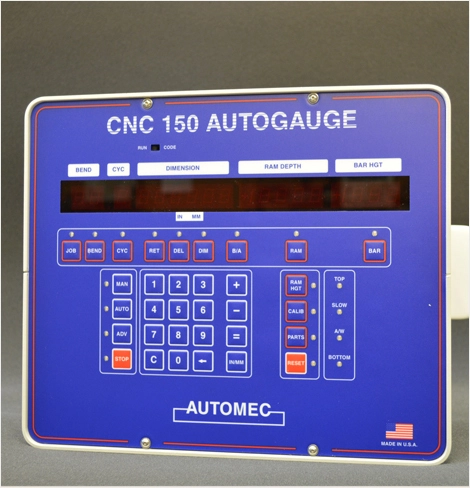

Our CNC150 is an economical, simple-to-use control that incorporates all of the most popular features requested by our customers over the 30 plus years we have been in the back gauging business. The CNC150 supports up to 3 axes of control: back gauge, ram & gauge bar height.
11-digit part storage All ram dimensions Retract on pinch
can be offset +/- .393″ point with 2
with one data entry or 3 axis system
150 jobs (00 to 150) Calculator to change IN/MM conversion
dimensions incrementally
20 bends per job Parts counter Membrane keyboard
Programming delay/ 1,2, or 3 axis 30-day battery
retract between back up
bends (0-19 seconds)
Bend allowance .001″ resolution Input power – 115
VAC +/- .393″ +/-
10% 50/60 HZ, 7A
Red L.E.D. display Ram display can show
true ram position or
freeze lowest
position attained
for diagnosis
