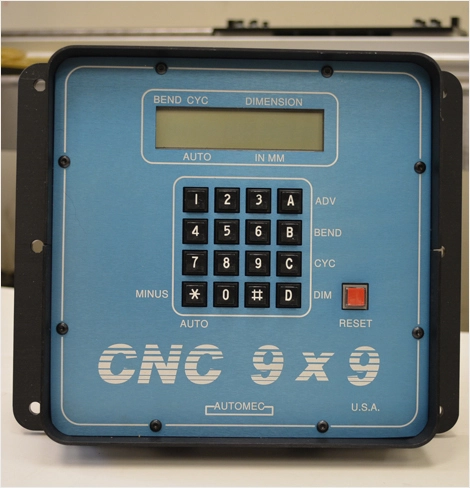

AUTOMEC CNC 9x9
Backgauges
The CNC9x9 system is a simple-to-use 9 bend, single axis system that was developed as a low cost solution to be used with Automec's series of back gauges for press brakes.
9 bends per job .001″resolution 5 year flash memory backup
9 cycles 1/2″ LCD display Control size 8 1/4″
(or repeats) H X 10″ W X 2 1/4″ D
per bend
Bend allowance IN/MM conversion Control weight 4 lbs
+/- .999″
Single axis only Tactile feel Input power – 115 VAC
pushbuttons +/- 10% 50/60 HZ, 1A
(control)
Input power – 115 VAC
+/- 10% 50/60 HZ, 15A
(backgauge)
