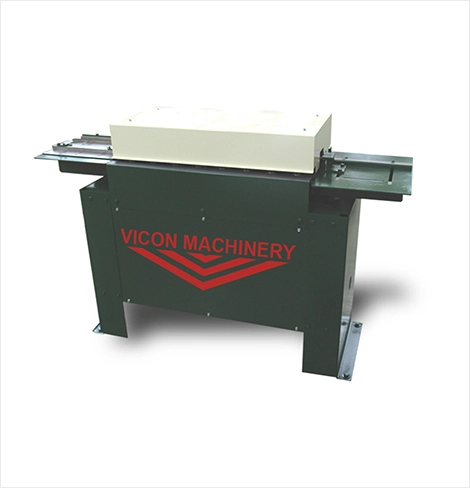

VICON V8-P20 PITTSBURGH ROLLFORMER

Description

The V8 Pittsburgh Rollformer produces connections that exceed the standards set by SMACNA.

The V8 rollformer can be optionally tooled with either Right Angle Flange, 4-in-1 or Acme Lock Rolls.

Features & Benefits

Quietest machine in the industry
Eight forming stations for all roll sets - no opening roll on any roll set
Large, heavy duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
Slide out shaft design allows for easy maintenance
Heavy duty 1" diameter stress proof roller shafts
Woodruff shaft keys for added strength and precise alignment
5 HP motor coupled to an industrial oil bath worm gear drive for longevity
Heavy duty roller chain drive, no belts
Heavy duty motor starter with thermal protection overloads
Options
Right Angle Flange Rolls
20-28 Ga. (1/4" - 7/16")
16-24 Ga. (1/4" - 7/16")
Right Angle Flange
4-in-1 Rolls (22 Ga. - 28 Ga.) to produce clinch, small standing seam, 7/16" flange, and male 1/4 edge
4-in-1 Rolls
Acme Lock (Double Seam) Rolls
(20 Ga.-28 Ga.) or (16 Ga.-22 Ga.)
Acme Lock
5 Gallon Sealant System for sealing Pittsburgh Lock (1 Gun)
5 HP Single Phase Motor (90 FPM)
3 HP Single Phase Motor (60 FPM)
(18 gauge and lighter)
