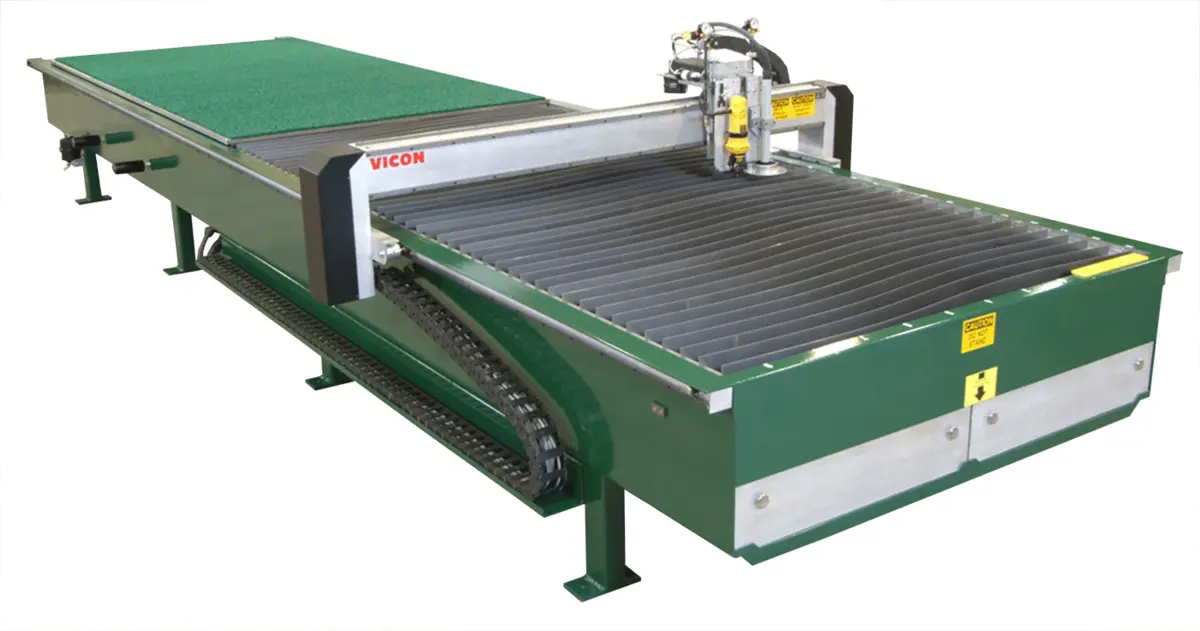

VICON HVAC 520-DL PLASMA CUTTING TABLE

Description

Versatility to the maximum! Cut metal or liner without any setup. Cut your metal on bed 1 and your liner on bed 2. You can also convert the machine to cut metal or liner on the entire 20 plus foot cutting area. The new Vicon patented process automates duct liner cutting, making it clean, dry, fast, smokeless and accurate. In addition, liner waste is greatly reduced adding to the increased profits.

OPTIMIZE WORK FLOW!

With the patented Bar Code Scanning option, sorting problems are a thing of the past. Coordinating the flow of sheet metal and duct liner through the shop is made much simpler and faster. Sheet metal parts are scanned, and the machine is automatically programmed to produce the corresponding downsized duct liner. Superior true-shape nesting minimizes waste.

Features & Benefits

Combination machine cuts both sheet metal and duct liner with precision accuracy on the same table
For users that need additional sheet metal and liner cutting capability
Available in table sizes: 5'x10', 5'x20', 6'x10' and 6'x20'
Robust, one-piece steel frame for strength, stability and easy installation
Adjustable, quick-change torch holder - no tools are needed to change torch consumables
A ski cup protects the torch tip from contacting the material
Patented systems to hold and cut duct liner
Automatic liner cutting and plasma cutting selection from Vicon controller
Various torch options available for plasma cutting
Synthetic table surface for smooth liner cutting
Vicon HVAC Cutting Software produces two geometries - one for the sheet metal and another for the duct liner
Dual rack and pinion drive on both axes for greater positioning accuracy
Aluminum gantry results in "low inertia" for greater part accuracy
Roller guides on both axes for greater rigidity, stability and accuracy
Traversing speed up to 2,000 inches per minute
Non-lubricating gears and bearings
