SPIRAL HELIX GORELOCKER
Have one to sell?
ConditionNew
New

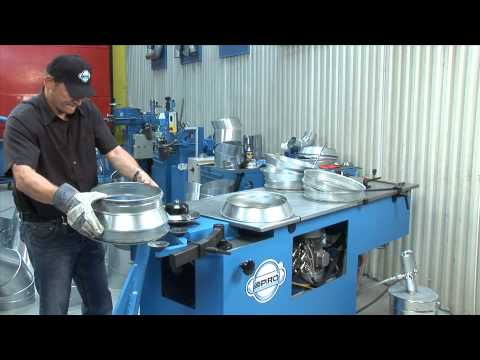

High production Gorelocker produce standing lockseam elbows and reducers. The high flexibility is achieved by means of 2 separate workstations: a flanging station and seam closing station. Thus the machine is always ready for operation without time-consuming conversion. The standing seam reduces welding to just one longitudinal seam and improves rigidity.
Unique Features
» Dual working station
» Maximum flexibility with no equipment change
» Constant quality / High production speed
» High capacity with material thickness up to 1.5 mm
» Virtually no maintenance, no lubrication necessary
» High quality parts and all rotating tools are made of hardened steel / High quality seams
Diameter Range
125 – 1250 mm (5”– 50”)
Material Thickness
0.4 – 1.5 mm (0.016”– 0.059”) galvanized steel 0.4 – 1.0 mm (0.016”– 0.039”) stainless steel 0.4 – 1.5 mm (0.016”– 0.059”) aluminium
Flanging Speed
Max. 120 m / min. (394 fpm)
Maximum Output
40 bends / hour (4 segments – Ø 200 mm bend)
Electrical Connection
3 x 400 V / 50 Hz / 4 kVA (other connections on request)
