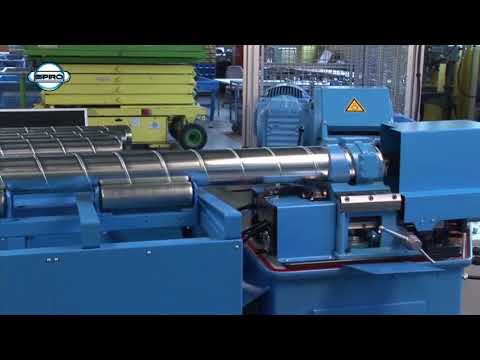

SPIRAL-HELIX TUBEFORMER 1602 / 3600 STANDARD
Have one to sell?
ConditionNew
New
The world's most sold Tubeformer has been reinvented!
The prestigious Tubeformer 1602 / 3600 has been widely recognized in the HVAC and sheet metal industry as the spiral duct machine with outstanding quality, reliability, and performance-driven approach.
As the inventor of the spiral duct technology Spiro® launched a new modular Tubeformer concept for HVAC application. The new design aims at custom-tailored configurations suitable for individual production demands and greater functionality flexibility for future expansions.
"The world's best tubeformer revolutionized an entire industry"
Assemble the machine according to your needs when it comes to output (speed configurations), strength (material thickness configurations), and range (dimension configurations)!
The new touch screen based Spiro® Control System manifests an operation- and production friendly design coupled with many features, including the newly developed optional PC Download function for enhanced production efficiency.
Unique Features
» Frequency controlled main drive with intelligent drive feedback feature
» State of the art touch screen with the unique Spiro® HMI control system, multilingual
» Cut to length with Spiro® Flying Slitter Model H
» Increased tube length up to 20m (Option required)
» Produce ducts with inward lockseam (Option required)
Diameter 80 – 1600 mm (3” – 64”)
Strip Thickness Galvanized steel
(The smaller Ø cannot 0.4–1.3mm (0.016”–0.051”)
be made with Stainless steel
thick material)
0.4–0.6mm (0.016”–0.024”)
Aluminium
0.4–1.3mm (0.016”–0.051”)
Performance Tested 0.5 mm (0.020’’) thickness – 100 mm
/ Guaranteed (4”) diameter–180Ducts/hour
(Based on duct 0.7 mm (0.028’’) thickness – 500 mm
of 3 m length) (20”) diameter–53Ducts/hour
0.9 mm (0.035’’) thickness – 1250 mm
(50”) diameter–23Ducts/hour
Features Automatic length measurement system
Large state-of-the-art Touch Screen
panel with superior user interface
Cutting System: Smooth and noiseless
cut with hydraulic Slitter Model H
Spiro® Connect Function prepared
Other Applications Post-Tensioning
