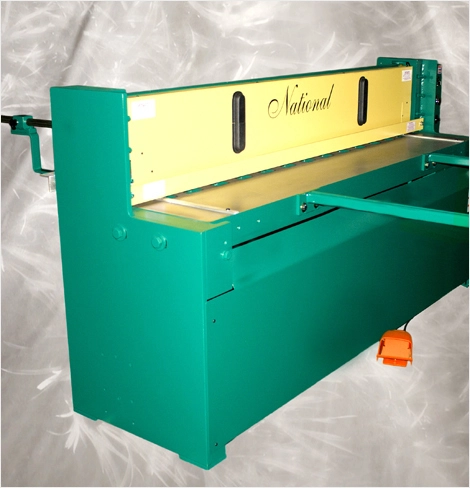

NATIONAL NM610 MECHANICAL SHEARS
Have one to sell?
ConditionNew
New
All USA made rugged welded construction. Inch bed scales, accurate table side gauges... Hold Down/ Finger guard with non-marring urethane and positive spring actuation. High carbon high chrome long life tool steel blades. Upper and lower blades are interchangeable. Non- metallic gibs, maintenance free self-lubricating bearings. Continuous cycle, single cycle and job for different needs. Fully guarded safety foot switch, low power consumption with quite operation.
Capacity Tensile Strength Mild Steel
55,000 @ rated cap 10 Gauge 3.4 mm
SS 14 Gauge 2mm
Strokes Per Minute Approx. 40
Cutting Legnth 73"/1854 mm
Shipping Weight 4900 lbs/2223 kg
Floor Space w/ Gauges 92"x89"x53"
2362x2260x1346
Floor Space w/o Gauges 93"x28"x53"
2362x711x1346
Motor 7.5 hp 208 v
240 v
460 v
3 phase
