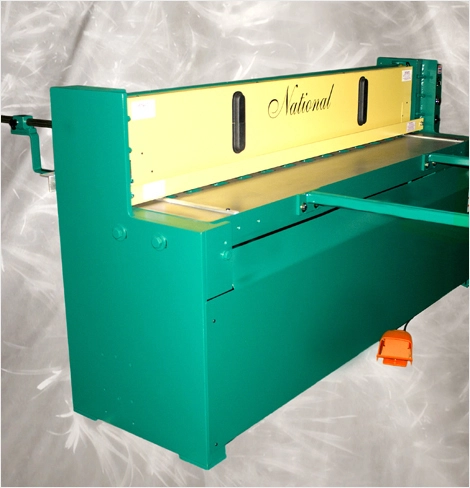

NATIONAL NM1014 MECHANICAL SHEARS
Have one to sell?
ConditionNew
New
All USA made rugged welded construction. Inch bed scales, accurate table side gauges... Hold Down/ Finger guard with non-marring urethane and positive spring actuation. High carbon high chrome long life tool steel blades. Upper and lower blades are interchangeable. Non- metallic gibs, maintenance free self-lubricating bearings. Continuous cycle, single cycle and job for different needs. Fully guarded safety foot switch, low power consumption with quite operation.
Capacity Tensile Strength Mild Steel
55,000 @ rated cap 14 Gauge 2 mm
SS 16 Guage
1.6 mm
Strokes Per Minute Approx. 40
Cutting Legnth 121"/3073 mm
Shipping Weight 6100 lbs/2767 kg
Floor Space w/ Gauges 141"x32"x53"
3581x2260x1346
Floor Space w/o Gauges 141"x32"x53"
3581x813x1346
Motor 5 hp 208 v
240 v
460 v
3 phase
