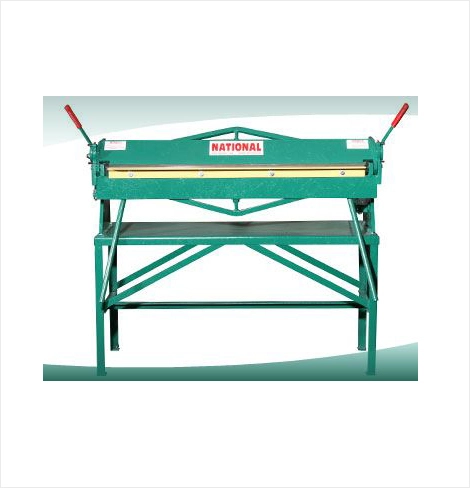

NATIONAL U4816 BENCH BRAKES
Have one to sell?
ConditionNew
New
Simplicity of design allows these brakes to work in the most direct fashion. Easy to set up and operate. Body sections are welded steel plates, with heavy truss rods and braces for longer life and greater strength. These brakes are standard with extension handles, apron stops for repeat bends, and replaceable bushings at points of wear. Stand optional.
Capacity Mild Steel 16 Gauge
(Yield Strength 1.6mm
30,000 lbs. @ rated Stainless 20 Gauge
capacity) .9mm
Maximum Lift of Beam 1 1/4/32mm
Finger Width 2 3 4
51mm 76mm 102mm
Maximum Depth of Box 4/102mm
Bending Length 48 1/4/1226mm
Shipping Weight 500lbs/227kgs
1689 x 965 x 1372mm
