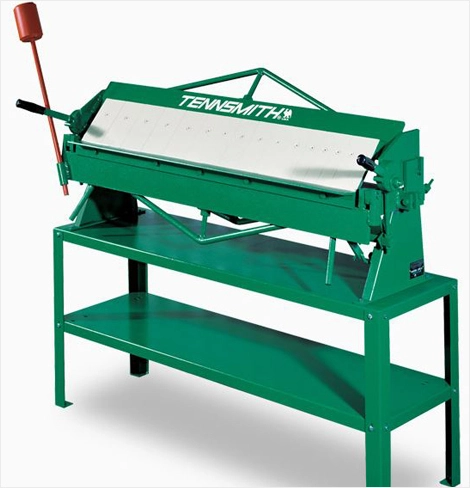

TENNSMITH HB97-12 HAND BRAKES
Have one to sell?
ConditionNew
New
Tennsmith's heavy-duty hand brakes are designed and built for long service and accurate bending. Welding steel plate construction and heavy truss rods and braces provide strength and durability.
With much more substainial steel side plates than other domoestically made units, these brakes have the rigidity required for upper beam adjustment without the use of wrenches.
Equipped with thrust bearrings, the upper leaf adjustment screws permit quick, accurate alignment for different material thicknesses or radii.
Capacity, Mild Steel
12 Gauge
2.7 mm
Bending Length
97 in.
2464 mm
Maximum lift Of Beam
2-1/4 in.
57mm
Front to Rear Beam Adjustment
1/2 in
13 mm
Minimum Reverse Bend
1/4 in.
6 mm
Minimum Flange In Capacity Material
1 in.
25 mm
Dimensions (counterweights in place)
145 x 54 x 63-1/2 in.
3683 x 1327 x 1613 mm
Shipping Weight
2800 lbs.
1273 kg
