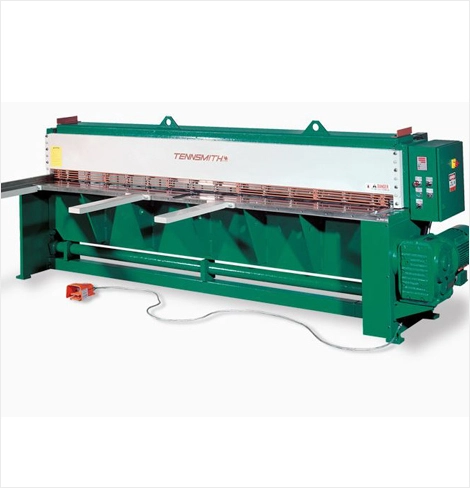

TENNSMITH LM410 MECHANICAL SHEARS
Have one to sell?
ConditionNew
New
The LM series shears are standard with four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with noprene inserts, single continuous and jog stroke cycles, motor reverse switch, precision-macines table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
Capacity Mild Steel
10 Gauge
3.5 mm
Capacity, Stainless Steel
14 Gauge
2.0 mm
Maximum Cutting Length
52-1/2 in.
1334 mm
Back Gauge Range
24 in.
610 mm
Strokes Per Minute, Full Length
35
Motor-230/460v,3-PHASE, 60Hz
7.5hp
Numbers of Holddowns
8
Floor Space, Gauges in Position
72 x 68 x 55-1/2 in
1829 x 1753 x 1410 mm
Shipping Weight
3400 lbs
1542 kg
