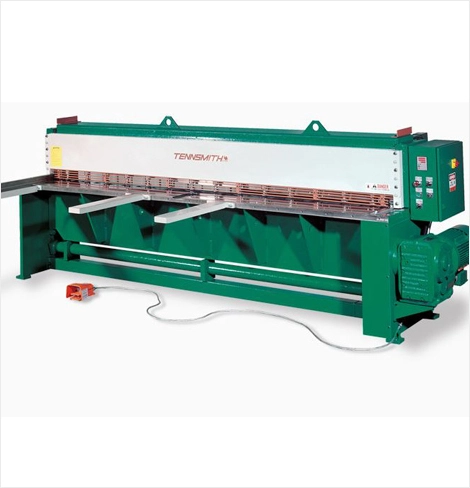

TENNSMITH LM1012 MECHANICAL SHEARS
Have one to sell?
ConditionNew
New
The LM series shears are standard with four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with noprene inserts, single continuous and jog stroke cycles, motor reverse switch, precision-macines table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
Capacity Mild Steel
12 Gauge
2.7 mm
Capacity, Stainless Steel
16 Gauge
1.6 mm
Maximum Cutting Length
121 in.
3073 mm
Back Gauge Range
30 in.
762 mm
Strokes Per Minute, Full Length
35
Motor-230/460v,3-PHASE, 60Hz
7.5 hp
Numbers of Holddowns
16
Floor Space, Gauges in Position
140 x 72 x 56 in.
3556 x 1829 x 1423 mm
Shipping Weight
6400 lbs
2910 kg
