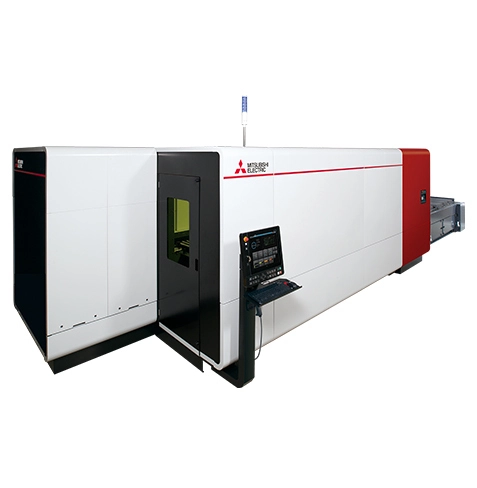

MITSUBISHI ML 4020 GX-F FIBER LASER
Have one to sell?
ConditionNew
New
The new Mitsubishi GX-F Series of two-dimensional fiber lasers delivers more power while using less nitrogen, translating into lower operating costs and higher profitability. These state-of-the-art lasers are easy to operate no matter the skill level, with intuitive, smartphone-like controls and faster, more stable processing that delivers consistent beam quality.
Designed by Mitsubishi engineers and built with Mitsubishi components, the GX-F Series is one of the only laser systems in the industry with a single source for service and support
Available Platform
ML 4020 GX-F
Machine Structure
Weld Bonded Chassis with Precision Helical Rack & Pinion, Direct Drives
X – Axis Stroke 161.41” (4100mm)
Y – Axis Stroke 82.67” (2100mm)
Z – Axis Stroke 4.7” (120mm)
Maximum Work Piece Size
159.44” (4050mm) x 81.10” (2060mm)
Maximum Processing Feed Rate
3937 in/min (100 m/min)
Maximum Work Piece Weight
3637 lbs. (1650 kg)
Table Pass Height
35” (890mm)
Rapid Travel Speed
6700” (170 m/min) simultaneous
Positioning Accuracy
0.0019”/20” (0.05/500 mm)
Repeatability
±0.00039” (0.0099 mm)
Machine Unit Dimensions
487” (12376mm) x 140” (3560mm)
Machine Weight (No Pallet Changer)
20943 lbs. (9500 kg)
Pallet Changer Weight
8900 lbs. (4037 kg)
Oscillator Specs
Manufacturer
Mitsubishi Electric
Excitation Method
Ytterbium Doped Fiber
Wavelength
1.07µm
Available Output Power (CW)
4 kW , 6 kW
Processing Head
Zoom
Delivery Method
100µm Fiber Cable
