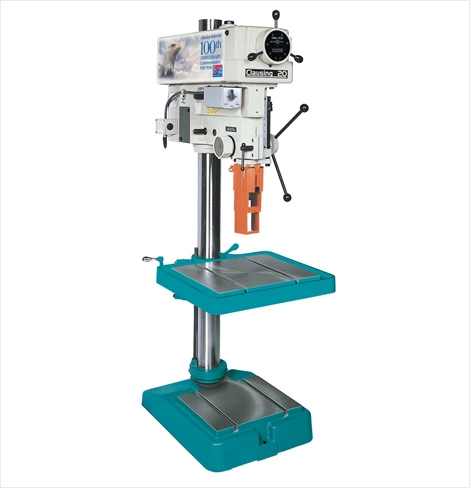

CLAUSING 2275 VARIABLE SPEED DRILL PRESS
Have one to sell?
ConditionNew
New
Clausing Variable Speed Drill Press with single speed motor allows you to dial to the best rpm for the tool and material while the job is running. 200 to 1300 rpm – speeds to drill large holes, small holes to spot-face, counter-bore and ream. Production rated 1” in cast iron, ¾” in steel. Clausing’s heavy-duty drive (Three V-belts and a cog belt) delivers positive full power to the spindle at all speeds. 208-230/460 volt 3 phase voltage.
Clausing 20” Floor Drill Press, 200-1300 RPM Vari-Speed with counter shaft and sheave pulley drive, 2.5” diameter quill, 3MT taper spindle, 22” x 19.5” adjustable work table, 1 ½ hp spindle motor, 208-230/460 volt 3 Phase voltage
Machine Style Floor Drill
Drive Type Variable Speed Sheave Pulley
Spindle Speeds (RPM) 200-1300
Column to Spindle Center (in) 10
Spindle Nose 3MT
Spindle Travel (in) 6.5
Spindle to Base Max. (in) 43.375
Column Diameter (in) 4
Column Length Standard (in) 66
Adjustable Table Surface (in) 22 X 19.5
Work Table T-Slots (in) 1/2
Table and Base Centers (in) 9
Base Size (in) 15.5 x 13
Drill Capacity with Manual Feed (in) 1.25
E-Stop Switch Optional
Forward/Reverse Switch Optional
Two Speed Switch N/A
Voltage 208-230 or 460
Phase Three
Motor Horsepower 1 1/2
Machine Weight (lbs.) 600
Machine Dimensions (LxWxD in) 22 x 36 x 69
