CLAUSING 2276 VARIABLE SPEED DRILL PRESS
Have one to sell?
ConditionNew
New
Clausing Variable Speed Drill Press with two speed motor, allows you to dial to the best rpm for the tool and material while the job is running. 150 to 2000 rpm – speeds to drill large holes, small holes to spot-face, counter-bore and ream. A flip of the switch changes from low range to high range, perfect for production applications when adding quick change tooling. Greater capacity, too, with Clausing 2 Speed, production rated 1” in cast iron, ¾” in steel. Clausing’s heavy-duty drive (Three V-belts and a cog belt) delivers positive full power to the spindle at all speeds. 208-230 volt 3 phase voltage.

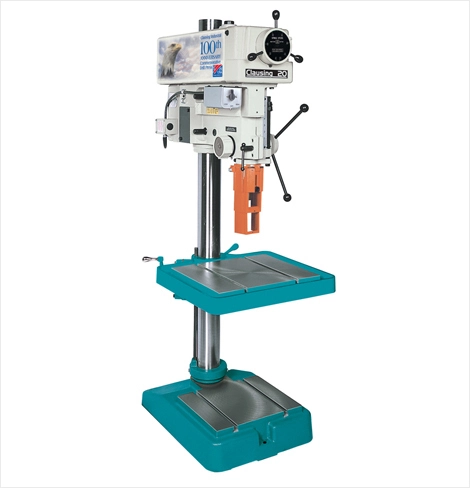

Clausing 20” Floor Drill Press, 150-2000 RPM Vari-Speed with counter shaft and sheave pulley drive, two speed motor and drum switch, 2.5” diameter quill, 3MT taper spindle, 22” x 19.5” adjustable work table, 1 ½ hp spindle motor, 208-230 volt 3 Phase voltage
Machine Style Floor Drill
Drive Type Variable Speed Sheave Pulley
Spindle Speeds (RPM) 150-2000
Column to Spindle Center (in) 10
Spindle Nose 3MT
Spindle Travel (in) 6.5
Spindle to Base Max. (in) 43.375
Column Diameter (in) 4
Column Length Standard (in) 66
Adjustable Table Surface (in) 22 X 19.5
Work Table T-Slots (in) 1/2
Table and Base Centers (in) 9
Base Size (in) 15.5 x 13
Drill Capacity with Manual Feed (in) 1.25
E-Stop Switch Optional
Forward/Reverse Switch Optional
Two Speed Switch Yes
Voltage 208-230
Phase Three
Motor Horsepower 1 1/2
Machine Weight (lbs.) 600
Machine Dimensions (LxWxD in) 22 x 36 x 69
