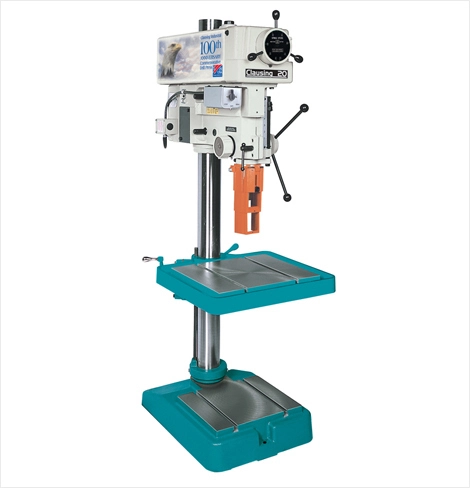

CLAUSING 2274CNC3-230 VARIABLE SPEED DRILL PRESS
Have one to sell?
ConditionNew
New
Clausing CNC Electronic Inverter Variable Speed Drill Press with single speed motor allows you to program the best rpm for the tool and material while the job is running. 50 to 2000 rpm – speeds to drill large holes, small holes to spot-face, counter-bore and ream. Production rated 1-1/4” in cast iron, 1” in steel. Clausing’s heavy-duty drive (Three V-belts and a cog belt) delivers positive full power to the spindle at all speeds. E-Stop, Forward/ Reverse switch, and No Voltage reset button add high reliability and increase production to your manufacturing process. 230 volt 3 phase voltage. CNC Controller using G-codes for quill feed allows operators to program rapid approach, peck drilling, tube drilling, spindle speed, feed rate, and much more to enhance the drilling production.
Clausing 20” CNC Floor Drill Press, 50-2000 RPM Inverter Variable Speed control, counter shaft and timing belt drive, CNC G-Code quill feed control, 2.5” diameter quill, 3MT taper spindle, 22” x 19.5” adjustable work table, 1 ½ hp spindle motor, E-Stop, Forward/Reverse switch, and no voltage reset button, 230 volt 3 Phase voltage
Machine Style CNC Floor Drill
Drive Type Electronic Variable Speed
Spindle Speeds (RPM) 50-2000
Column to Spindle Center (in) 10
Spindle Nose 3MT
Spindle Travel (in) 6.5
Spindle to Base Max. (in) 43.375
Column Diameter (in) 4
Column Length Standard (in) 66
Adjustable Table Surface (in) 22 X 19.5
Work Table T-Slots (in) 1/2
Table and Base Centers (in) 9
Base Size (in) 15.5 x 13
Drill Capacity with Manual Feed (in) 1.25
E-Stop Switch Yes
Forward/Reverse Switch Yes
Voltage 230
Phase Three
Motor Horsepower 1 1/2
Machine Weight (lbs.) 645
Machine Dimensions (LxWxD in) 36 x 36 x 69
