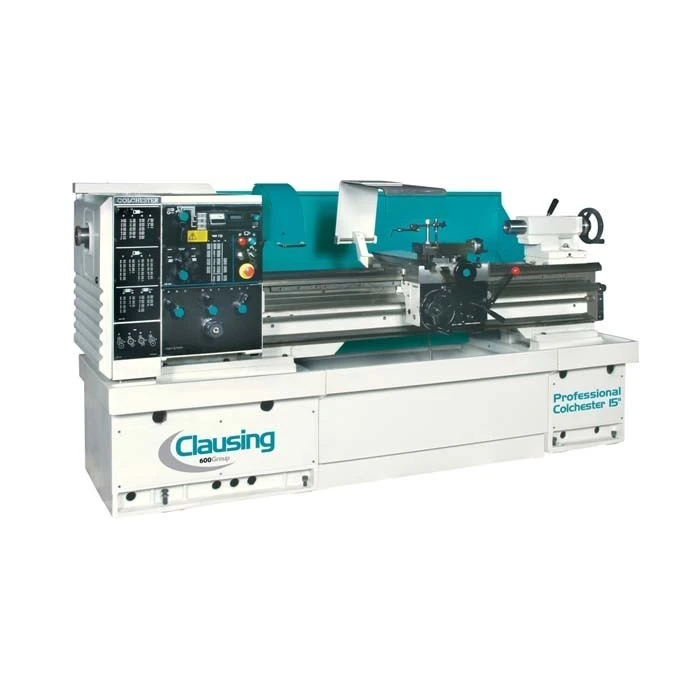

CLAUSING 15" GH LATHE
Have one to sell?
ConditionNew
New
Clausing Colchester Geared Head Engine Lathes are the industry standard for conventional lathes... because the quality built into every machine translates into real long-term performance in your application. Rugged construction, consistent quality in design and production and the "human engineering" which makes the operator more efficient, all make this lathe a cost-effective investment.
Capacity
Height of Center 7.68" (195mm)
Swing Over Bed 15.75" (400mm)
Swing in Gap 23" (585mm)
Width in Front of Faceplate 6.5" (165mm)
Swing over Cross Slide 9.7" (246mm)
Bedway Width 12.5" (318mm)
Headstock
Spindle Bore 2.12" (54mm)
Spindle Nose (camlock) D1-6
Spindle Nose Taper 4MT
Number of Spindle Speeds 16
Spindle Speed Range (rpm) 25-2000
Low Range (rpm) -
Mid Range (rpm) -
High Range (rpm) -
Cross/Top Slide
Travel of Cross Slide 9.8" (250mm)
Width of Cross Slide 7.09" (180mm)
Travel of Top Slide 5.1" (130mm)
Width of Top Side 3.93" (100mm)
Tailstock
Quill Travel 5.5" (140mm)
Quill Diameter 2.8" (73mm)
Quill Taper 5MT
Feeds and Threading
Longitudinal Feed Range (in) (mm) 0.014-0.096 in/rev .035-2.45mm/rev
Cross Feed Range (in) (mm) 0.0007-0.048in/rev .018-1.22mm/rev
Number of Inch Pitches 56
Range of Inch Pitches 2-56 TPI
Number of Metric Pitches 51
Range of Metric Pitches 0.2-14mm
Number of Diametral Pitches 20
Range of Diametral Pitches 8-56 DP
Number of Module Pitches 20
Range of Module Pitches 0.2-3.5 MOD
Motor
Spindle Motor 7.5 hp (5kw)
