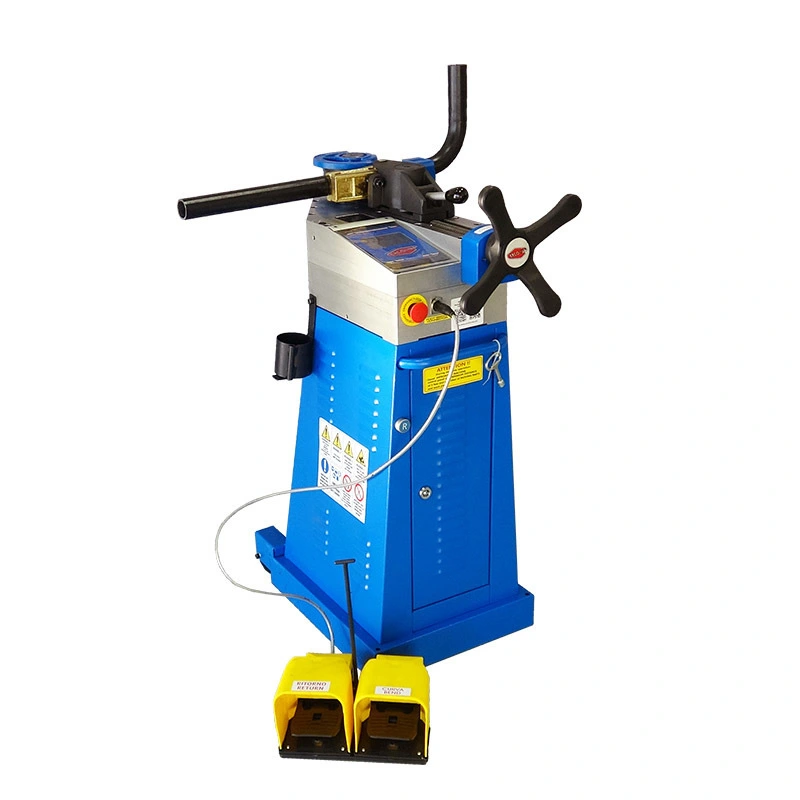

New ERCOLINA SB 48 - TC | Pipe & Tubing

Mild steel tube capacity 2″

Pipe capacity 1-1/2″ Sch. 40

Square tube capacity 1-1/2″ .083 wall

Maximum CLR 8-7/8″

Bend to CLR as small as 2D

Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience

Touch screen indicates bend angle, springback and bend speed for each angle within the program

Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy

Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components

Quick-change tooling system with multiple radii available

Right or left hand bending available with vise accessory

Automatically stops at desired bend angle to end cycle

Unlimited program storage for quick recall

Use control panel or foot pedal to initiate bend and return functions

Counterbending die position monitored electronically for accuracy and repeatability

Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends

No hydraulic components

Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor spaceTB 60-TC: Ercolina TB60-TC Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.
