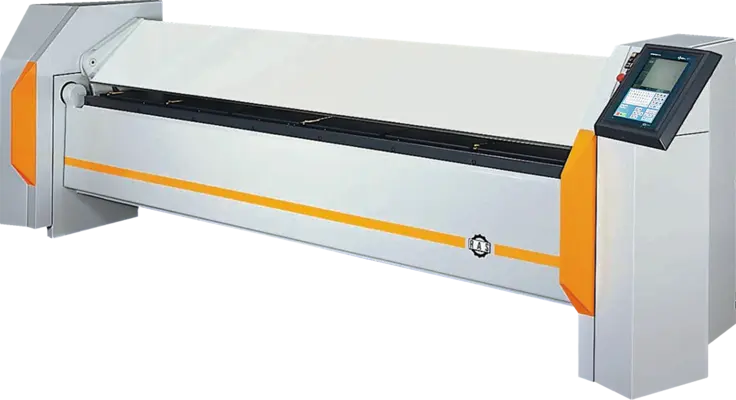

New RAS TURBOBEND | Folding Machines

Description

Bending profiles for roof, wall, facade
Easy to use (short training period, changing operators)
Ideal for all materials: copper, titanium zinc, aluminum, steel, stainless
Ideal for all typical sheet thicknesses: 0.5-1.2 mm, sometimes > 1.2 mm
Large free space for a wide range of part geometries
Automatic gauging system (repeatable profiles, no marking)
Fast machine (earlier on the construction site)
Low unit costs (one-man operation, low investment)

Upper beam:
The TURBObend’s upper beam is an engineering marvel. It’s eccentric elbow pivot opens and closes the upper beam quickly, powerfully and incredibly accurate. This means the TURBObend can create incredibly accurate bends and hems while offering superior longevity and low maintenance.
Fast closing/opening movements
Hems: closed, open, tear-drop shape
Large free space in front of the upper beam (part design flexibility)
Rigid upper beam for straight bends
Speed normal and reduced (for marking work)

Folding beam:
Optimized for maximum stiffness, the folding beam of the TURBObend creates most accurate and repeatable parts. With its dynamic movements, the TURBObend ensures maximum productivity and unheard-of speed. The machine makes the material thickness adjustments automatically, not the operator, so they will always be correct.
Fast movement: short production time
Deep folding beam: excellent bend results
Automatic adjustment to material thickness
No downtime for machine adjustments
Gentle and scratch-free bending of coated materials
Long machine lifetime

Gauging and sheet support system:
The fingers of the stop system position the workpiece for each bend. All stop fingers disappear below the table when the bending part has to be turned on the sheet support system.
Fast positioning, repeatable operation
No 2nd operator (50% cost saving)
No marking (30% time saving)
Sheet support tables hold the weight of the sheet

Touch&More control:
Use your finger to draw the part with flanges and angles on the screen of the Touch&More control. The software shows the part together with tools and machine components in the later working situation.
Control panel build-in side stand
Drawing of the part with the finger
Technology tables (angle correction/unfolded length)
Programm, part and actual bending step are shown at a time
Program library with profile icons
Operator guidance (text and symbols)
Speed Optimizer for 15% less cylce times
EasyGo program for occasional operators

Versatile tools:
The TURBObend creates all profiles with a one-piece upper tool. For the folding beam different tool widths are available. The CrownTool is a folding beam tool with an integrated and adjustable crowning system. It is extremely suitable for radius bending.
Large free spaces for unlimited part design ideas
Folding beam tools for different thicknesses and Z bends
CrownTool with adjustable crowning for radius bending
Lower beam tools with finger pockets for stop fingers
