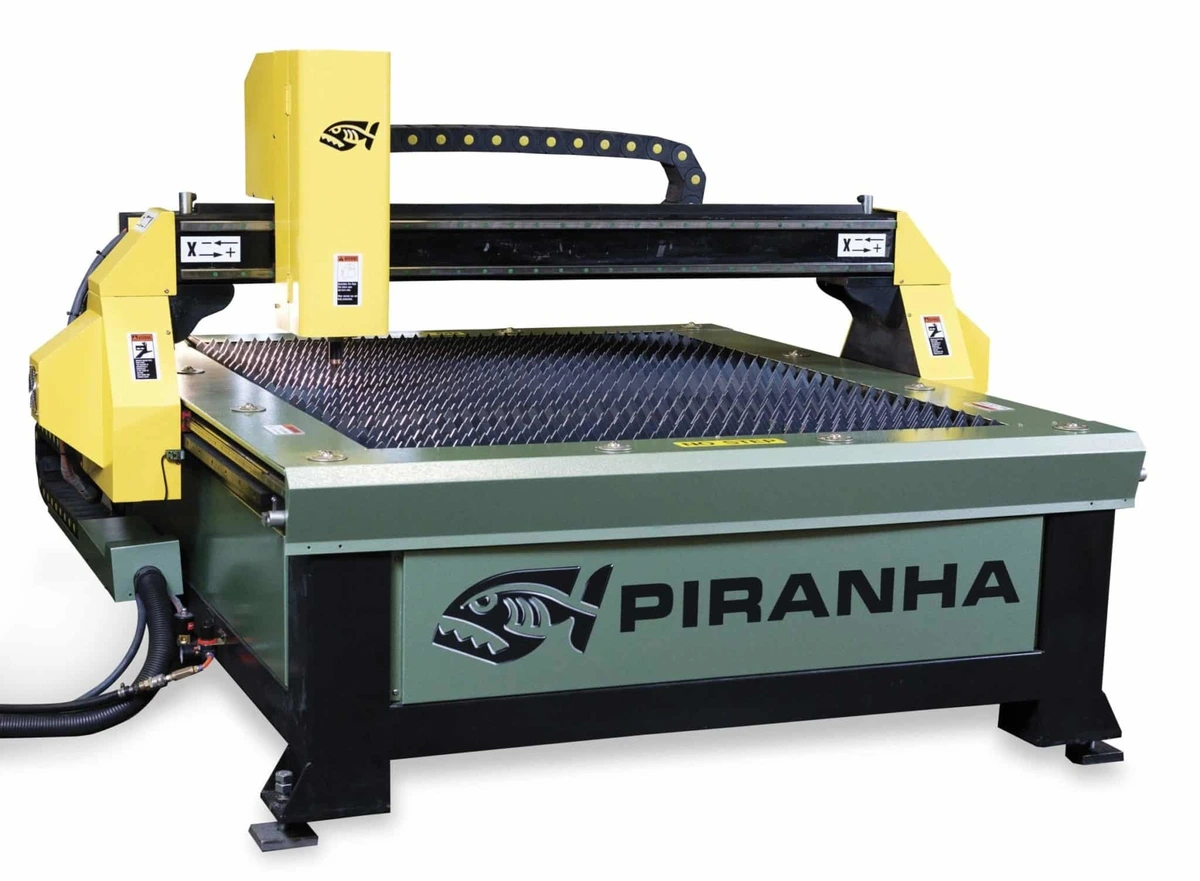

New - Build-To-Order PIRANHA C Series | Plasma Table

Description

Piranha C-Series plasma tables provide a reliable quality plasma cutting solution at a low investment level, making Piranha quality and durability attainable for a broader range of shops.

Machine Size*:
82”L x 92”W x 60”H
Machine Weight:
1,500 lbs

Rugged Construction – All-Welded Steel Frame (not bolt-together) with high accuracy linear guides and bearings. Machine is assembled complete at the factory
Dual Side Drive – gantry driven on both sides for maximum stability
CNC Control with 10.4” High resolution color LCD monitor, shape library with 20 configurable shapes, 8MB memory & USB interface
Panasonic servo motors and drives – Powerful 400 watt servo motors (not stepper motors) on both X-axis and Y-axis with a maximum traverse speed of 8000mm/min.
Down draft exhaust system – Pre-vented duct work with exhaust fan for plasma dust extraction – no messy sludge to clean out and dispose of.
MicroStep Programmable Torch Height Control – controls torch height automatically
Breakaway Torch Mounting – protects the torch from inadvertent part tip-ups
ProNEST® 2019 LT Smart Start Programming System – 2D CAD drawing, DXF importing, integrated shape library, drag and drop nesting.NOTE: ProNEST® 2019 LT Essentials and ProNEST® 2019 LT Unlimited packages are available as options.
