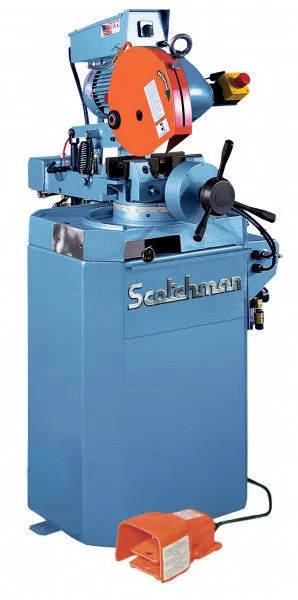

New SCOTCHMAN CPO 275 PKPD | Circular Cold Saws

Cutting Speeds
(must specify when ordering)
LT(Low Turn) - designed for solid mild steel, solid stainless steel & thick wall pipe LT (Low Turn)
30 / 60 rpm Motor rate:
2 hp
HT(High Turn) - designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material HT (High Turn)
60 / 120 rpm Motor rate:
1.5 hp
SS(Single Speed) - designed for 220v 1ph applications SS (Single Speed)
60 rpm Motor rate:
2 hp
Maximum Cutting Capacities
(based on mild steel)
TUBING

Round
Square
Rectangle

90 Degree:
3-3/8" (86 mm)
3" x 3" (76 x 76 mm)
3" x 2-3/8" (76 x 60 mm)

45 Degree:
2" (51 mm)
2" x 2" (51 x 51 mm)
2" x 2" (51 x 51 mm)

SOLID
Round
Square

90 Degree:
1-1/2" (38 mm)
1-1/2" x 1-1/2" (38 x 38 mm)

45 Degree:
1" (25 mm)
1" x 1" (25 x 25 mm)

Motor Options (Factory Wired) Specify:
LT & HT: 208/230/460/575v, 3 ph
SS: 220v, 1 ph
Maximum Diameter Blade 275 mm
Arbor Bore 32 mm
Pin Spacing 2/8/45
Width 21-7/8" 55.5 cm
Depth 43-1/2" 110.5 cm
Height (not including feed handle) 53-1/4" 135 cm
Height (floor to vise) 36-1/8" 92 cm
Shipping Weight (may vary) 670 lbs. 304 kg
