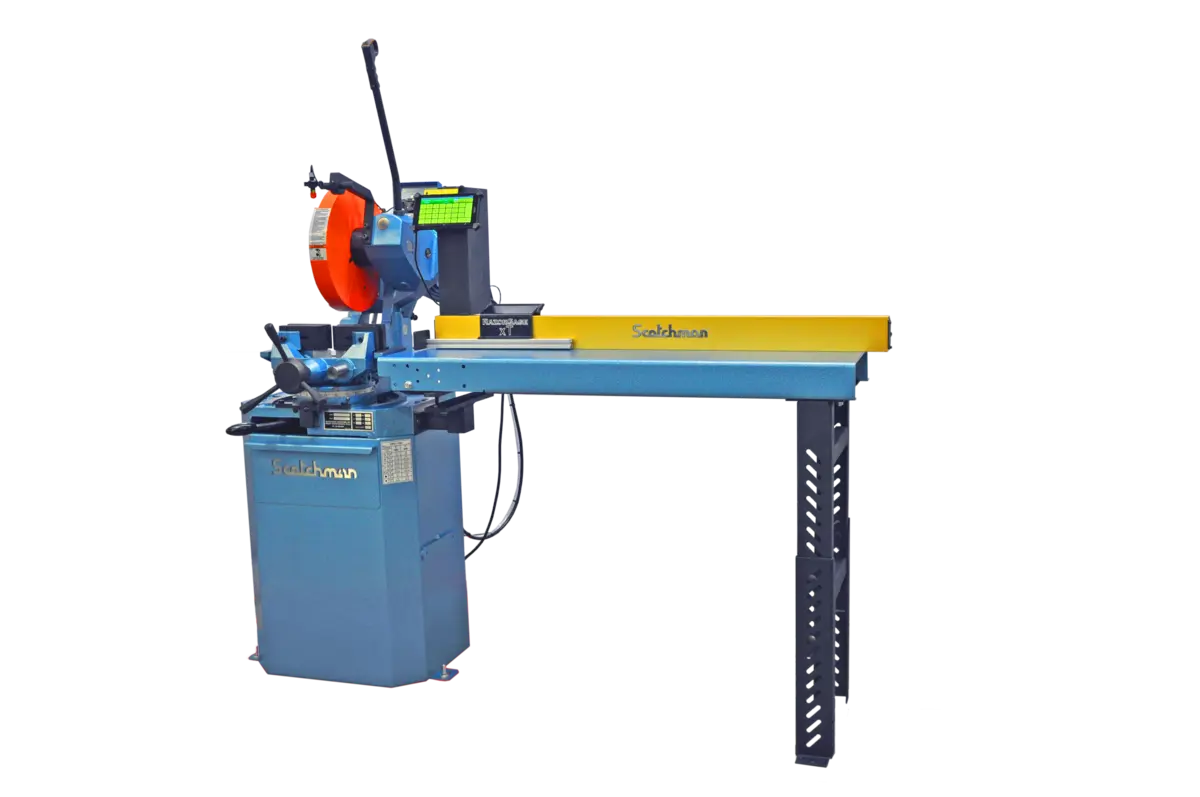

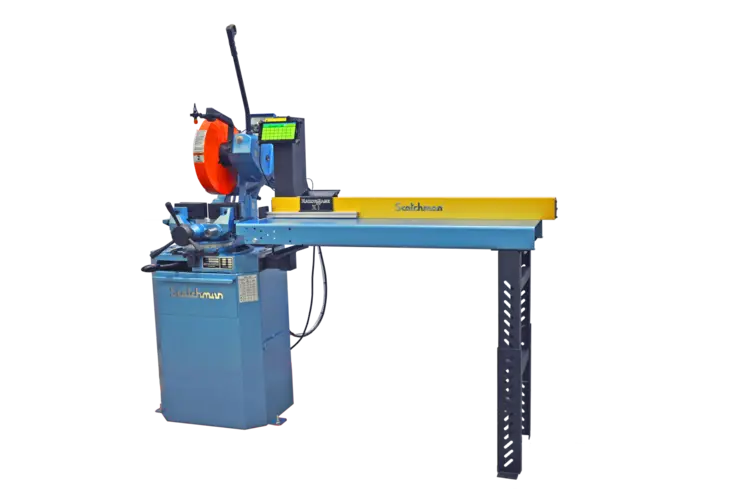

New SCOTCHMAN CPO 350 NFPK | High Speed Circular Saws (non-ferrous)
Have one to sell?
ConditionNew
New
Air operated double self-centering vise assures burr-free cuts
Operator controlled trigger switch
Miter capabilities 45 degrees left to 45 degrees right
Miter locking device: Quick, accurate settings-stops at 45 degrees left, 90 degrees, and 45 degrees right
Capable of slotting
Positive-driven cogged belt system
Chip drawer
Mist coolant lubrication system
One 350 mm diameter carbide-tipped blade
One blade wrench
One gallon coolant
Complies with ANSI B11.10 safety standards
Warranty: Three years on parts
Made in USA
Cutting Speed 3,000 rpm
Motor Rate: 5 hp
Maximun Cutting Capacities
(Non-Ferrous & PVC )
TUBING
Round
Square
Rectangle
90 Degree:
4-1/2" (114 mm)
4-1/4" x 4-1/4" (108 x 108 mm)
5-1/2" x 4" (140 x 102 mm)
45 Degree:
4-1/4" (108 mm)
4" x 4" (102 x 102 mm)
4" x 4" (102 x 102 mm)
SOLID
Round
Square
90 Degree:
3" (76 mm)
3" x 3" (76 x 76 mm)
45 Degree:
2-1/2" (64 mm)
2-1/2" x 2-1/2" (64 x 64 mm)
Motor Options (Factory Wired) Specify:
208/230/460v, 3 ph
Maximum Diameter Blade 350 mm
Arbor Bore 40 mm
Pin Spacing 4/12/64
Width 21-7/8" 55.5 cm
Depth 43-1/2" 110.5 cm
Height (not including feed handle) 56-1/4" 143 cm
Height (floor to vise) 37-7/16" 95 cm
Shipping Weight (may vary) 655 lbs. 297 kg
