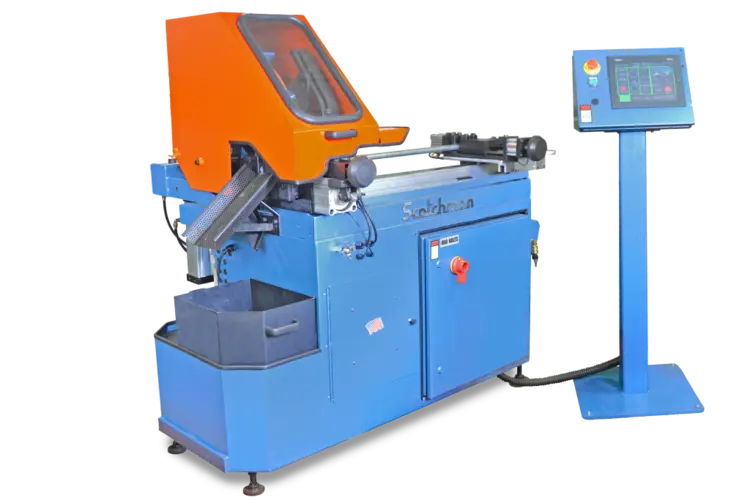

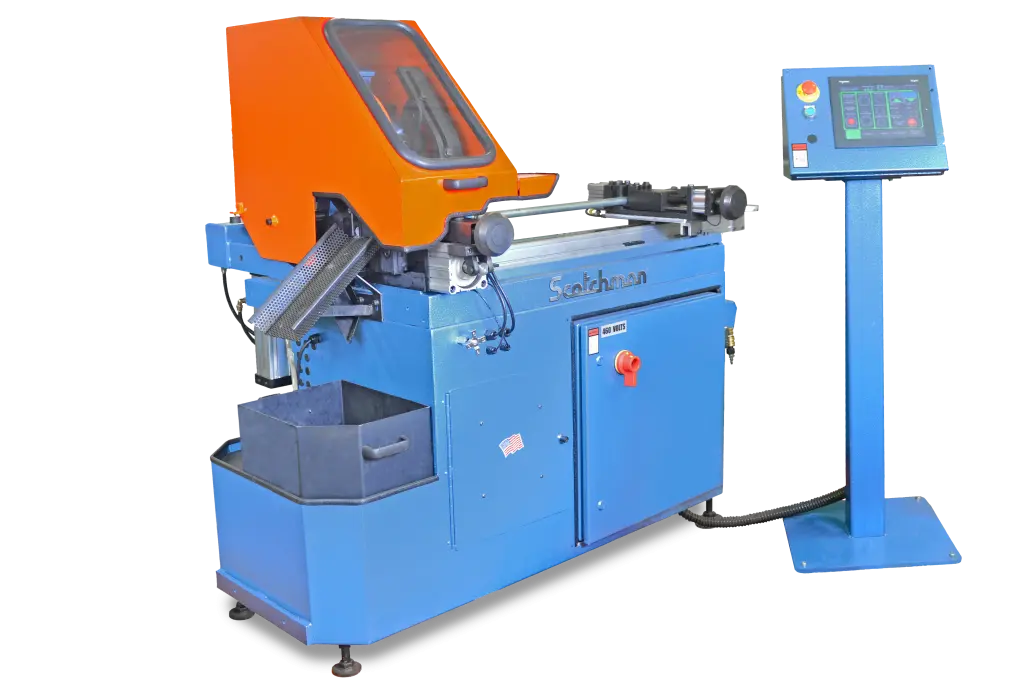

New - Build-To-Order SCOTCHMAN CPO 315 HFA CNC | Circular Cold Saws
Have one to sell?
ConditionNew
New
Fully automatic cycle (available In ferrous or non-ferrous)
Touch screen controls
Precision CNC controlled
Interlocking safety hood
Emergency stop button
Clamping both sides of blade--highest quality, burr-free cuts
Blade guides for accurate tolerances (ferrous model)
Mist coolant lubrication system
Adjustable stroke control on the saw head
Adjustable down feed control on the saw head for feed rate
Adjustable indexing feed speeds
Program up to four separate cut lengths in each job
100 Program job storage
30" Single shuttle length (unlimited shuttles)
Piece counter
One saw blade
One gallon coolant
Complies with ANSI B11.10 safety standards
Warranty: Two years on parts
Made in USA
Cutting Speeds
(must specify when ordering)
CPO 315 HFA CNC (ferrous)
Variable Speed: 11 to 177 rpm
Motor Rate: 5 hp
CPO 315 HFA CNC NF (non-ferrous) 3,000 rpm
Motor Rate: 5 hp
Maximum Cutting Capacities
(based on mild steel)
TUBING
Round
Square
90 Degree:
Up to 3-1/2" ( ≤ 89 mm)
Up to 3-1/8" x 3-1/8" ( ≤ 79 x 79 mm)
SOLID
Round
Square
90 Degree:
Up to 1-3/4" ( ≤ 45 mm)
Up to 1-1/2" x 1-1/2" ( ≤ 38 x 38 mm)
Maximun Cutting Capacities (NF)
(Non-Ferrous & PVC ) SOLID (NF)
Round
Square
90 Degree:
Up to 3-1/2" ( ≤ 89 mm)
Up to 3-1/8" x 3-1/8" ( ≤ 79 x 79 mm)
Length Tolerance ± 0.006" per index
Squareness Tolerance ± 0.002" per diameter inch
Minimum Cut Length 1/8" 3 mm
Maximum Cut Length Unlimited
Motor Options (Factory Wired) Specify:
208/230/460v, 3 ph
Air Pressure 90 psi
Maximum Saw Blade Diameter 315 mm
Arbor Bore Size 40 mm
Pin Spacing 4/12/64
Dimensions L- 100"
W- 44"
H- 64" L- 254 cm
W- 112 cm
H- 162.5 cm
Shipping Weight (may vary) 1,800 lbs. 816.5 kg
